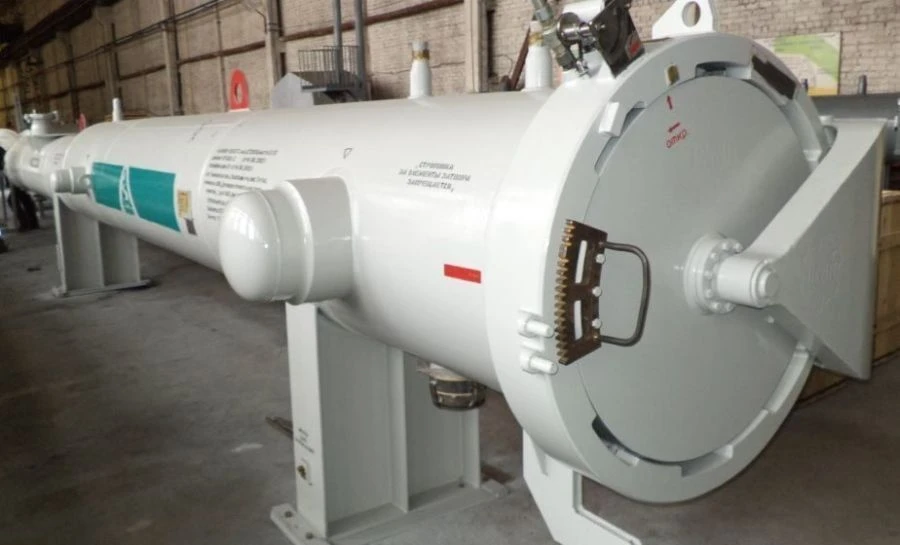

Launch and Reception Chamber for In-Pipe Cleaning and Diagnostics – KB DN 100-1400 mm

Starting chamber, receiving chamber, as well as reversible starting-receiving chamber, designed to work in the linear part of trunk, field and process pipelines with nominal bore from DN 100 to DN 1400 inclusive, operating under pressure PN up to 24,0 MPa inclusive and serving for launching and reception of in-line cleaning, diagnostics, sealing and other in-line devices (hereinafter referred to as "ICD") in the flow of the product pumped through the pipeline (hereinafter referred to as "chamber").
The chambers are designed for installation at stationary start-up/receiving units of RTU, temporary start-up/receiving units in a complete set necessary for application at unequipped sections of gas pipelines in the form of a mobile complex of work support.
Mobile complex of work support is manufactured in accordance with the technical conditions for launch-receiving chambers in accordance with the customer's questionnaire.
