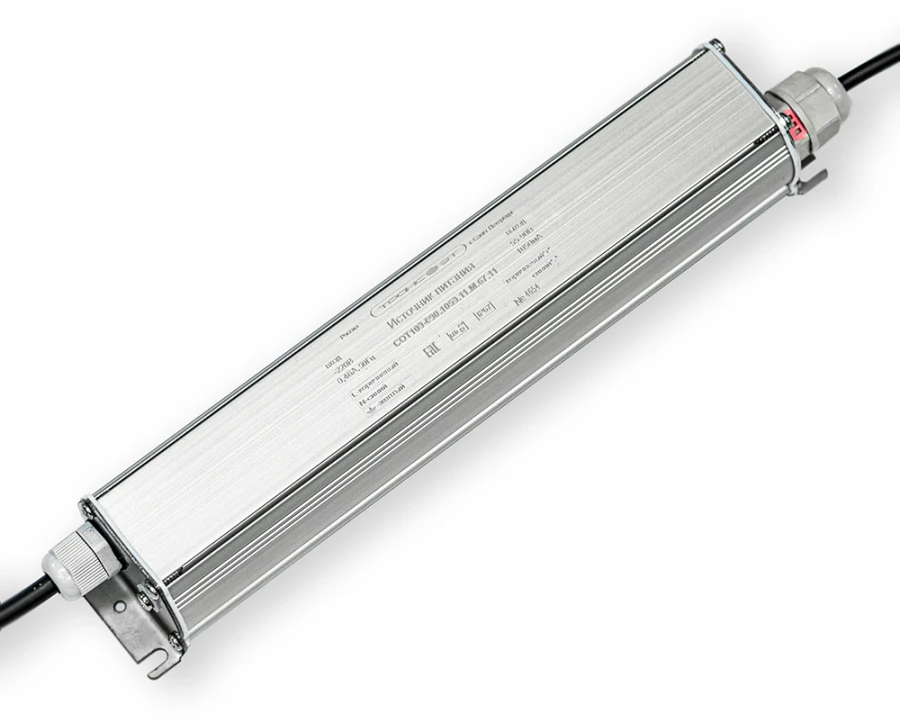

LED Matrix Power Supply COT100-090.1050.11.M.67.11 for Stable Current Applications

Power Supply Parts

Manufacturer: TRANSET LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for supplying stabilised current to LED matrixes

Specifications

Grant

5 years

EMC 9 kHz - 30 MHz

Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Degree of protection of the shell

IP 67

Dimensions of the source (DxWxH) mm

260 x 46,4 x 40

Weight with wires, not more

0.317 kg

Temperature protection threshold

55±5 °C

Temperature protection

Got it

Protection against output voltage overshoot

Got it

Protection when AC input voltage 380 Veff is applied

Got it

Provides light ripple factor, not more than

1 %

Electrical insulation strength (input-output), effective value

Weff 1500.

Galvanic isolation input - output

Got it

Maximum load power

94.5 W

Operating range of output voltage

55...90 V

Temperature deviation of output current value in the operating temperature range, not more than

3 %

Output current

mA 1050±5%

efficiency, at least

91 %

Current consumption

0.46 A

Input voltage frequency

48...60

Maximum allowable AC input voltage

Weff 400.

AC input voltage limit range

90...270 V

AC input voltage operating range

Weff 176-264.

Country of manufacture

Russia

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
