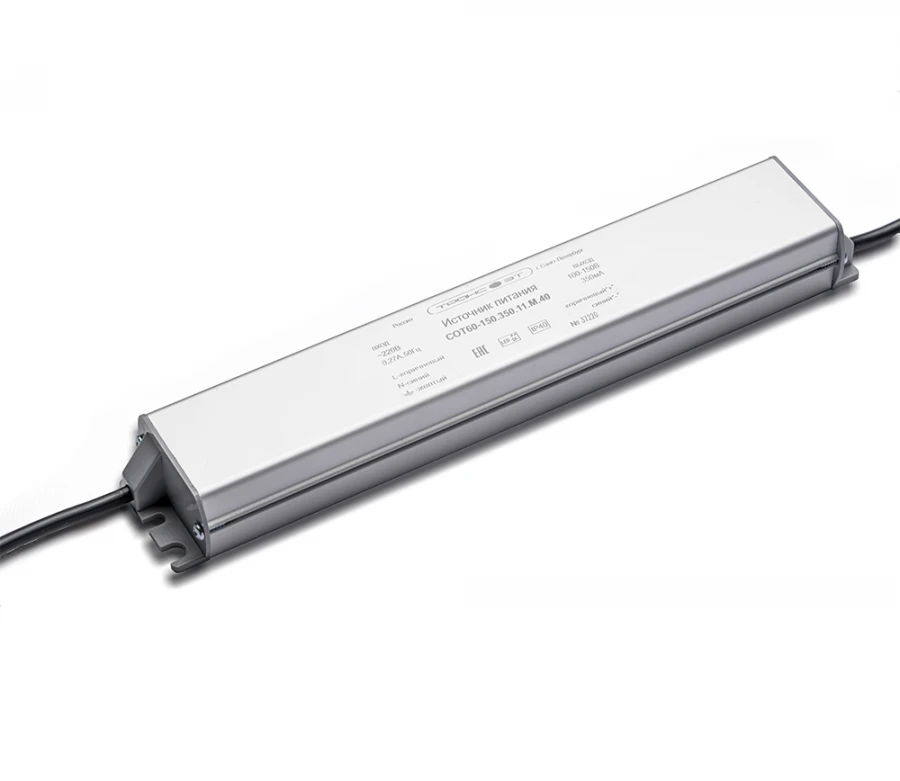

LED Matrix Power Supply Source 60W 150mA Model 350.11.M.40

Available for Import

LED Matrix Power Supply Source 60W 150mA for Stable Operation

Power Supply Parts

Manufacturer: TRANSET LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for supplying stabilised current to LED matrixes

Specifications

Warranty

5 years

Country of manufacture

Russia

AC input voltage operating range

Weff 176-264.

AC input voltage limit range

90...270 V

Maximum allowable AC input voltage

Weff 400.

Input voltage frequency

50±4%

Power factor, not less than

0.97

Current consumption

0.27 A

efficiency, at least

91 %

Output current

350±5%

Temperature deviation of output current value in the operating temperature range, not more than

2 %

Operating range of output voltage

100...150 V

Maximum load power

52.5 W

Galvanic isolation input - output

Got it

Electrical insulation strength (input-output), effective value

Weff 1500.

Provides light ripple factor, not more than

1 %

Protection when AC input voltage 380 Veff is applied

Got it

Protection against output voltage overshoot

Got it

Temperature protection

Got it

Temperature protection threshold

55±5 °C

Weight, max.

0.273 kg

Dimensions of the source (DxWxH) mm

193 x 46 x 28

Degree of protection of the shell

IP 40

EMC 9 kHz - 30 MHz

Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
