Available for Import

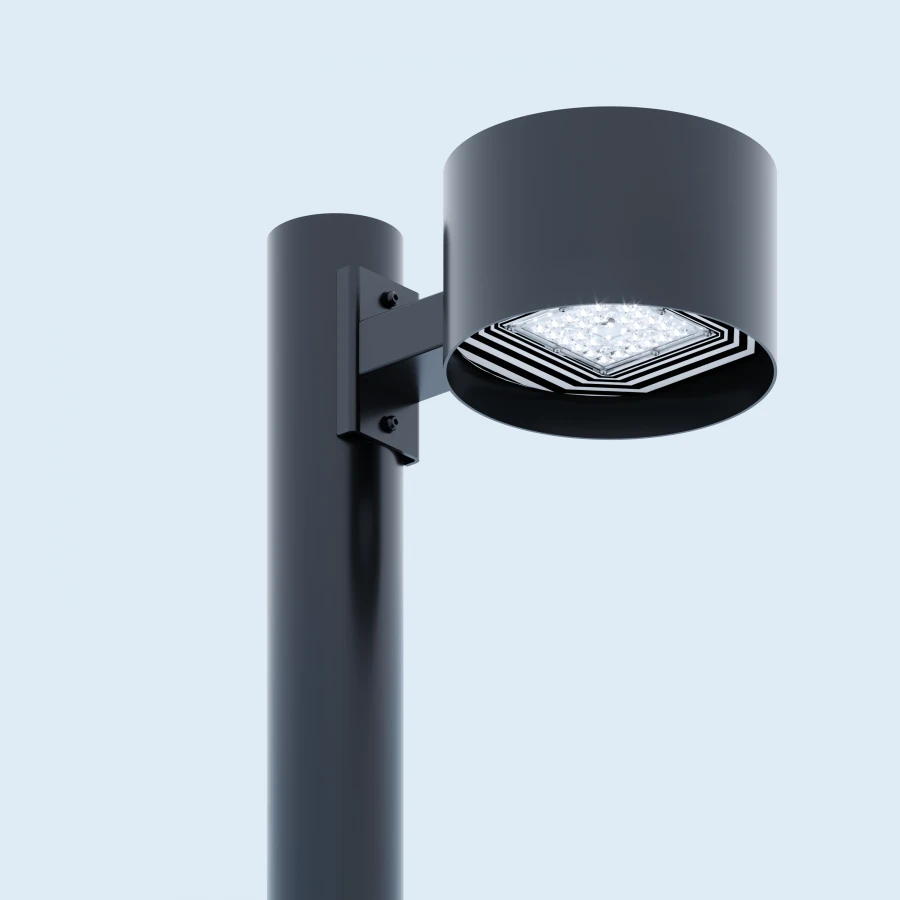

LED Outdoor Street Light LV-ROUND BASE for Parks and Public Spaces

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Street cantilever luminaire for illumination of parks and squares. Minimalistic design of the device organically fits both in the design of urban parks and squares, and in the architecture of modern residential complexes and business centres. The possibility to choose optics helps to solve different lighting tasks.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than

Degree of protection (IP)

IP66

Light output, lm/W, not less than

130

Type by installation location

Street, fixed, on bracket/support

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

1140...4480 lm

Upper operating temperature value

45 °C

Power consumption

9...32 W

Housing material

polymer-coated steel

Height

140 mm

Width

220 mm

Length

296 mm

Net weight

5.3 kg

Lower operating temperature value

-40 °C

Protection class against electric current

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.95

Rated supply voltage

230 V

Type of supply current

Variable

Designated service life

B1/B8 2100/900 MHz year

Warranty period of operation

5 year

Type of conditional light intensity curve in the equatorial plane

circularly symmetrical/axial/lateral/asymmetrical

Type of light intensity curve in characteristic meridional planes

L/L/W/M/S

Light distribution class

Mains frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
