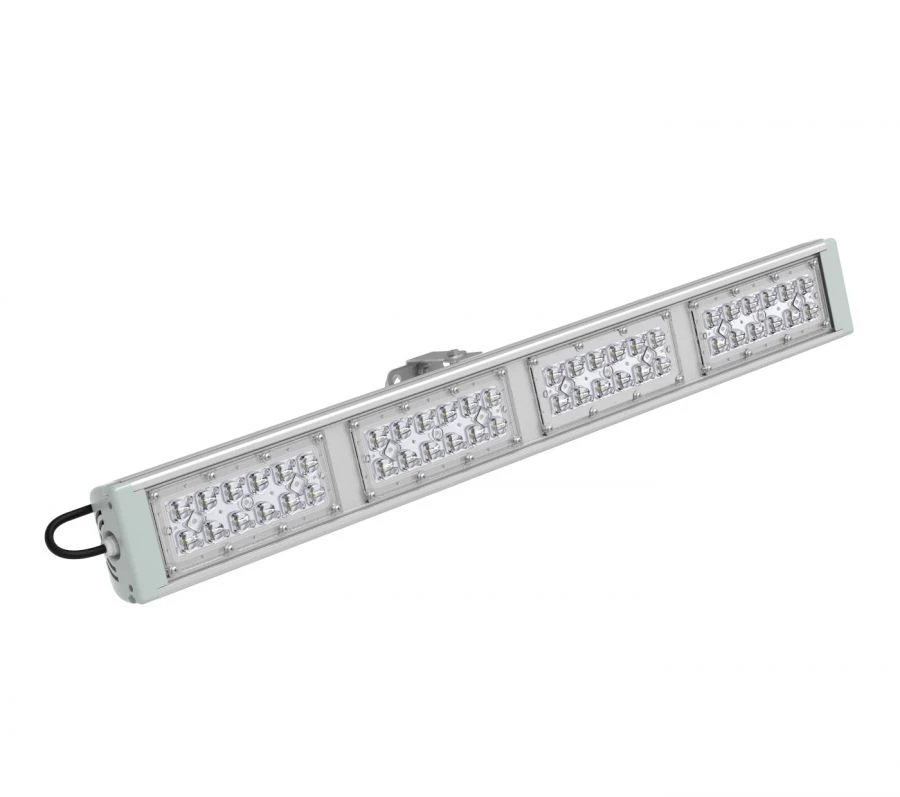

LED Street and Industrial Lighting Fixture SVT-STR-155W for Outdoor Applications

LED Lighting Fixtures

Manufacturer: SVT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

???????SVT-STR-155W Flux, lm23390 Power, W155 Eff., lm/W150 KSSSHB, 45x140 IP67 Warranty3 years Supply voltage176-264V AC, 50Hz Power factor0,98 Power supplyArgos IPS 160-1050T IP67 Protection class against electric shockI Secondary optics / diffuserLens "Cathode" PLR1200002KR Ripples of light flux, %<1% LED colour temperature5000K* - by default. Colour rendering index (CRI)70 ??????????CLP-5050F6D-06B- 48?? LED operating current525mA Climatic versionU1 EnclosureSoldered extruded aluminium anodised profile MountingSwivelling bracket with clamp for pipe up to 50.8mm Dimensions L/W/H, mm936x97x145 Packing volume, cu.m0,01 Weight, kg3,5 Ambient operating temperature -40°/+40° C Service life of LEDs60 000 h.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Height

145 mm

Color temperature

5000 K

Climatic version

Gross weight

4 kg

Net weight

3 kg

Protection class against electric current

Pulsation factor

1 %

Color rendering index (Ra)

Correlating color temperature (CCT)

5000 K

Luminous flux, lm

23390 lm

Power factor

Power consumption, W

One link up to 16GB 64-bit DDR4-2400 MHz with ECC support; 16GB (for CPC1309-01); 8GB (for CPC1309-02) W

Rated supply voltage

220 V

Upper operating temperature value

40 °C

Degree of protection (IP)

Type of supply current

Variable

Light source

48 pcs

Type by installation location

cantilever, surface-mounted, universal

Housing material

Aluminum

Model

svt-str

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
