LED Street Light ELEDA 70W Model HV-C-ST1-70W-L

Available for Import

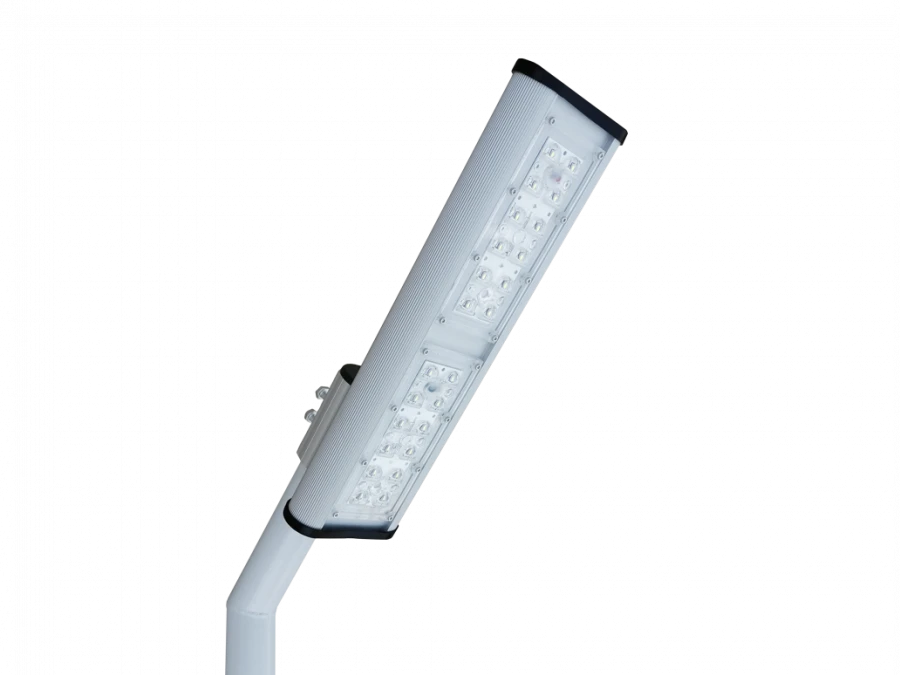

LED Street Light ELEDA 70W for Efficient Road and Street Illumination

LED Lighting Fixtures

Manufacturer: SVETOGRAD-SPB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

LED outdoor luminaire ELEDA 50 art. ??-?-??1-50W-L LED outdoor luminaire ELEDA 80 art. ??-?-??1-80W-L LED outdoor luminaire ELEDA 55 art. ??-?-???1-55W-L

Description

LED street light ELEDA 70W is used for lighting of streets and roads of category A, B, C. The luminaire is equipped with a special main secondary optics (lens), providing a wide light intensity curve ("W"). The use of this lens allows to provide uniform illumination of the roadway. The body of the luminaire is made of anodized extruded aluminium, which gives durability, reliability, corrosion resistance and perfect heat dissipation from LEDs, which ensures the longevity of operation of the main LED luminaire. The luminaire is equipped with a high degree of protection against dust and moisture (IP67), a good range of permissible ambient temperatures from -60°C to +45°C, has a cantilever type of mounting and can be mounted on a pipe with a diameter of up to 52mm. The working height of the luminaire mounting is 5-8 metres.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Width

120...130 mm

Pulsation factor

1...2 %

Color rendering index (Ra)

70...80

Gross weight

2.3...2.6 kg

Net weight

2...2.3 kg

Lower operating temperature value

45 °C

Protection class against electric current

Power factor

0.97

Type of supply current

AC, 50-60Hz

Height

121...130 mm

Power consumption

66...75 W

Type by installation location

Street

Housing material

Aluminum

Luminous flux, lm

9240...12000 lm

Upper operating temperature value

45 °C

Power supply voltage

176...264 V

Length

400...550 mm

Degree of protection (IP)

Correlated color temperature

2700...6500 K

Climatic version

UHL1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
