High-Efficiency LED Light for Versatile Applications - TSR4-90-H-F90-5000K

LEDMASTER LED Light TSR4-90-H-F90-5000K for Efficient Lighting Solutions

Manufacturer:LEDMASTER LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

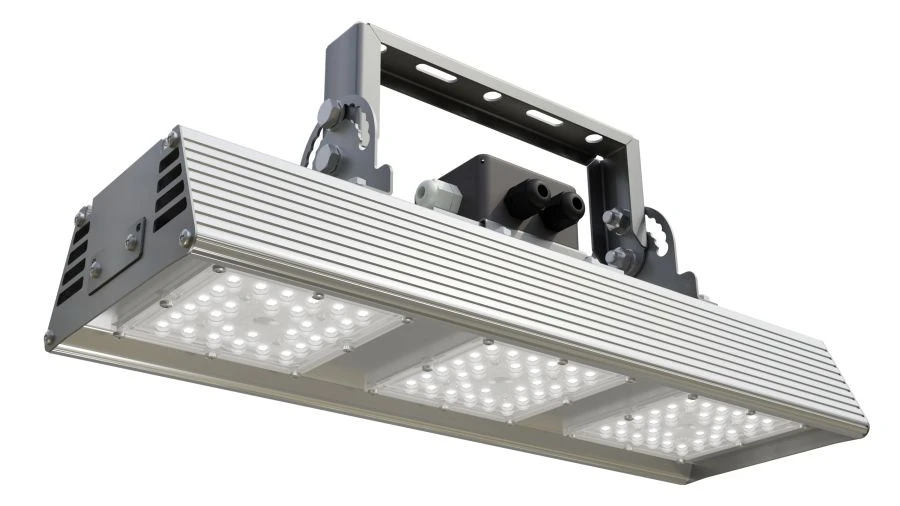

Luminaire consisting of one LED module, one power supply, mounting elements, wiring and junction box for connection to the network. Designed to work in AC networks with a nominal voltage of 220V and frequency of 50 Hz. The luminous flux of the luminaire is controlled by 1-10V protocol and soft start.Wall luminaire with adjustable angle of inclination is designed for illumination of open areas of railway infrastructure facilities (passenger platforms, station area, passages, service passages, etc.)

Specifications

Type of product according to PP RF 616
Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources
Luminous flux at dimming mode 100%,Lm
14944 lm
Power consumption in dimming mode 100%, W
88 W
Light output at dimming mode 100%, Lm/W
169
Correlating color temperature at 100% dimming mode (CCT),K
4853 K
Color rendering index at dimming mode 100%(CRI)
71
Ripple factor in dimming mode 100%
1 %
Power factor
0.98
Light intensity curve (LIC)
D - deep
Degree of protection (IP)
65
Highest ambient temperature
40 °C
Lowest ambient temperature
-60 °C
Protection class against electric current
I
Rated supply voltage, V
220 V
Operating voltage range, V
176...264 V
Operating frequency range, Hz
50...60
Housing material
Anodized aluminum
Mounting type
Wall mounted adjustable
Length, mm
429.1 mm
Width, mm
145.5 mm
Height, mm
185.7 mm
Net weight , kg
3.45 kg
Climatic version
UHL1
Warranty period of operation
5 years

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
