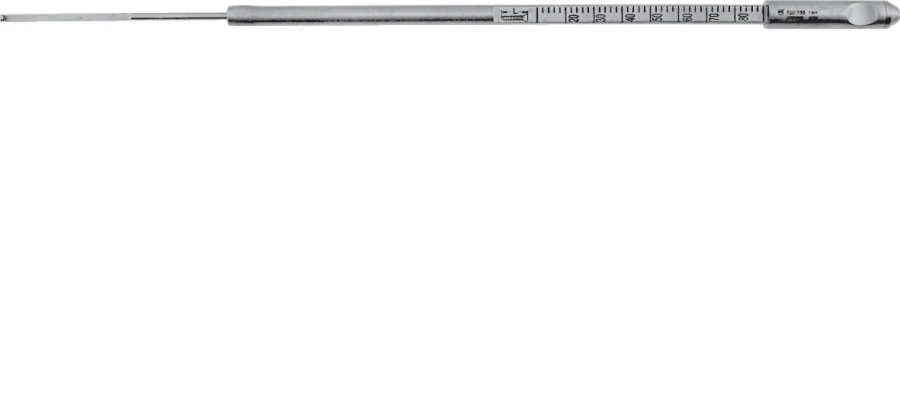

Length Measuring Tool for Intramedullary Osteosynthesis - Model 520.755

Instrument for intramedullary osteosynthesis of the humerus. It is used for the placement of humerus pins. Manufactured from corrosion resistant stainless steel.

Total length - 319 mm. Handle diameter - 10 mm. Diameter of the working part - 6.9 mm.

The diameter of the olive is 7.8 mm. The diameter of the stylus is 2.5 mm. Length of the stylus - 80 mm.

Height of the measuring hook - 3.1 mm. Measuring range from 20 to 80 mm. Colour coded in yellow.

Marking of the measuring range, screw images, individual labelling. Reusable.
