Linear Smoke Detector Explosion-Proof IP212-1VL "Line

Available for Import

Linear Smoke Detector Explosion-Proof IP212-1VL for Fire Safety Applications

Fire Alarm Detectors

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The fire detector smoke linear explosion-proof model IP212-1VL "Line" is designed to detect fires accompanied by smoke; transmission of alarm message "Fire" and "Malfunction" to receiving and control devices such as PPK-2, Signal-20P, etc. in fire protection systems for buildings and structures; transmission of alarm messages to an external PC (two-way communication) via RS-485 interface using ModBus protocol. The detector is designed for use in large-volume premises where atmospheric phenomena in the form of dust, rain and fog are known to be absent.

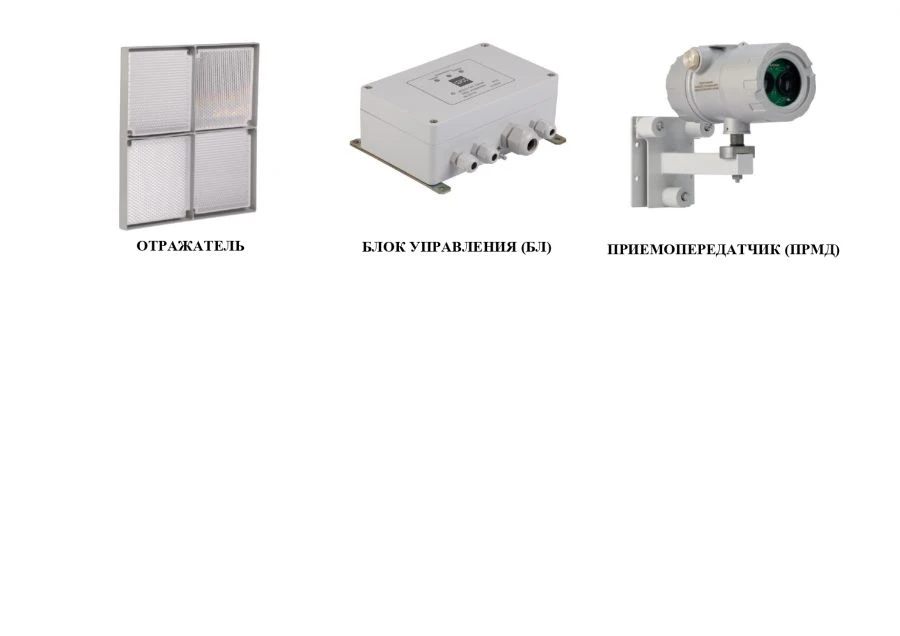

The detector consists of an explosion-proof transceiver PRMD, reflector and control unit CU (non-explosion-proof version). The transceiver is intended for use in hazardous areas of Class 1 and 2 premises, type of protection "flameproof enclosure". The control unit must be located in an explosion-proof area.

The detector has three thresholds of operation: 1,94dB (36%); 3,1dB (51%); 4,44dB (64%).

Specifications

Connection to the control panel loop

Two-wire

Maximum possible protected area of the room protected by one detector, max.

900

Power supply voltage

10...28 V

Power consumption, max.

2.5 W

Rated supply voltage

24 V

Explosion protection marking

1Ex db IIB T6 Gb X

Степень защиты от воды и пыли ПРМД

IP66

Degree of protection against water and dust BU

IP54

Operating temperature

-20...55 °C

Sensitivity to test fire centres according to GOST R 53325-2012

TP-2, TP-3, TP-4 and TP-5.

Distance between PRDM and reflector

8...100 m

Maximum possible width of the space protected by a single detector, max.

9 m

Light indication of operating modes

Red - FIRE, Green - NORMAL, Yellow - FAIL.

Length of communication line between PPMD and CU, not more

SBVVBG m

Length of the communication line between the CU and the ACC, not more

150 m

Communication line length between the CU and external computer via RS-485 (twisted pair), max.

500 m

Weight of PDM with bracket and 10 m cable, not more

4.7 kg

Weight of reflector, not more

1.2 kg

Weight of CU, not more

0.75 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
