Load Spreader Beam Type 1-6.0-1000Available for Import

Load Spreader Beam Type 1-6.0-1000 for Safe Load Distribution

Material Handling Equipment
Manufacturer:SAMSON LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Traverse beam type 1-1,0-2000Traverse beam type 1-8,0-2000Traverse beam type 1-12,5-3000Traverse beam type 1-12,5-10000Traverse beam type 1-0,63-6000
Traverse beam type 1-12,5-2000Traverse beam type 1-2,0-6000Traverse beam type 1-8,0-1000Traverse beam type 1-1,0-6000Traverse beam type 1-4,0-4000Traverse beam type 1-6,0-4000Traverse beam type 1-0,63-3000Traverse beam type 1-8,0-8000Traverse beam type 1-20,0-3000Traverse beam type 1-10,0-5000Traverse beam type 1-12,5-6000Traverse beam type 1-5,0-1000Traverse beam type 1-3,0-8000Traverse beam type 1-10,0-3000Traverse beam type 1-2,0-3000Traverse beam type 1-1,0-4000Traverse beam type 1-5,0-2000Traverse beam type 1-8,0-10000Traverse beam type 1-12,5-1000Traverse beam type 1-10,0-1000Traverse beam type 1-5,0-6000Traverse beam type 1-4,0-10000Traverse beam type 1-1,0-1000Traverse beam type 1-10,0-8000Traverse beam type 1-16,0-3000Traverse beam type 1-6,0-8000Traverse beam type 1-5,0-3000Traverse beam type 1-16,0-8000Traverse beam type 1-2,0-5000Traverse beam type 1-0,63-5000Traverse beam type 1-0,63-2000Traverse beam type 1-1,0-8000Traverse beam type 1-20,0-2000Crossbeam type 1-0,63-10000Traverse beam type 1-20,0-1000Traverse beam type 1-12,5-5000Traverse beam type 1-5,0-4000Traverse beam type 1-10,0-4000Traverse beam type 1-6,0-2000Traverse beam type 1-5,0-10000Traverse beam type 1-16,0-4000Traverse beam type 1-8,0-3000Traverse beam type 1-1,0-10000Traverse beam type 1-16,0-2000Traverse beam type 1-1,0-5000Traverse beam type 1-4,0-5000Traverse beam type 1-12,5-4000Traverse beam type 1-4,0-2000Traverse beam type 1-4,0-1000Traverse beam type 1-3,0-10000Traverse beam type 1-1,0-3000Traverse beam type 1-20,0-6000Traverse beam type 1-8,0-5000Traverse beam type 1-10,0-10000Traverse beam type 1-20,0-5000Traverse beam type 1-5,0-8000Traverse beam type 1-4,0-3000Traverse beam type 1-4,0-6000Traverse beam type 1-8,0-4000Traverse beam type 1-20,0-4000Traverse beam type 1-0,63-4000Traverse beam type 1-2,0-4000Traverse beam type 1-3,0-1000Traverse beam type 1-16,0-5000Traverse beam type 1-6,0-10000Traverse beam type 1-2,0-2000

Description

"Lifting beams are necessary to distribute the load evenly between all load anchorages, they protect the lifted load from compressive forces and ensure its safety when moving.

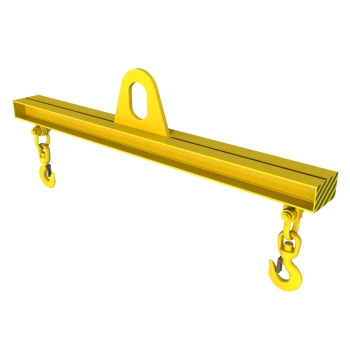

The traverse beam is a beam structure made of channels reinforced with sheet metal plates. The upper beam is equipped with a hook suspension, the lower beam has suspensions for slings and load-carrying equipment. The crossbeam is attached to the hoisting equipment by means of an eyelet brace or suspension.

As the crosshead is attached directly to the crane's working body, it allows to use the full useful height when lifting the load, but it is necessary to centre the load in order to avoid overweighting of the load on one of the sides when lifting.".

Specifications

Payload
6 t
Crosshead length
1 m
Diameter of the bottom eyelet bore
20 mm
Product weight
64.6 kg
Suspension size of top eyelet
150x230 mm
Manufacturer's item
30100043090
Designation
??001-6,0-1000
