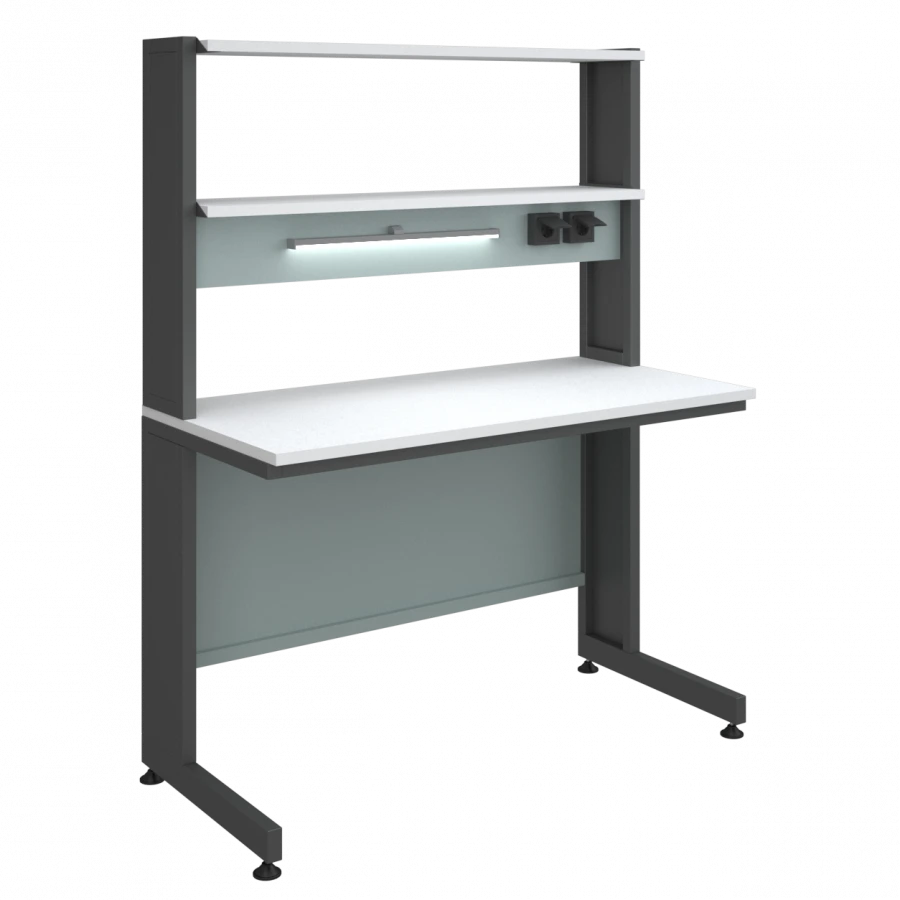

Low Laboratory Table with Overhead Unit 1 for Research and Testing

Size 1200x600x1526/750mm. The stand (sidewall) has a C-shape, the upper horizontal part is made of 30x30x1,5 mm pipe. The lower horizontal part is made of 60x30x1,5mm pipe.

The vertical part consists of two 30x30x1,5mm pipes and a box. The box is bent from cold-rolled sheet metal 0.7mm thick with overall dimensions of 615x145mm with a border around the perimeter of 15mm.Rack (sidewall) weldedCarga 1136x540mm. Pulpit is made of profile pipe with cross section 30x30x1,5mm.On the front side of the right (or left) side are made two holes with a diameter of 45mm, under the splash-proof electrical outlets 220v degree of protection IP54.

Metal cover 146x45mm.Made of cold-rolled sheet metal 1mm thick Table top and shelves Table top: 1200x600, LDFP 22mm. PVC edging around the perimeter 2mm. Covered with plastic at the bottom and top.

Holes are made for attaching the rack and for the electronics wiring. Shelves: 1115x260 2pcs, 16mm chipboard. PVC edging 1mm around the perimeter.
