Low Pressure Cylinder Rotor CND Drawing 48T230-3275CBR for Turbine Applications
Manufacturer:
URALENERGOREMONT OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

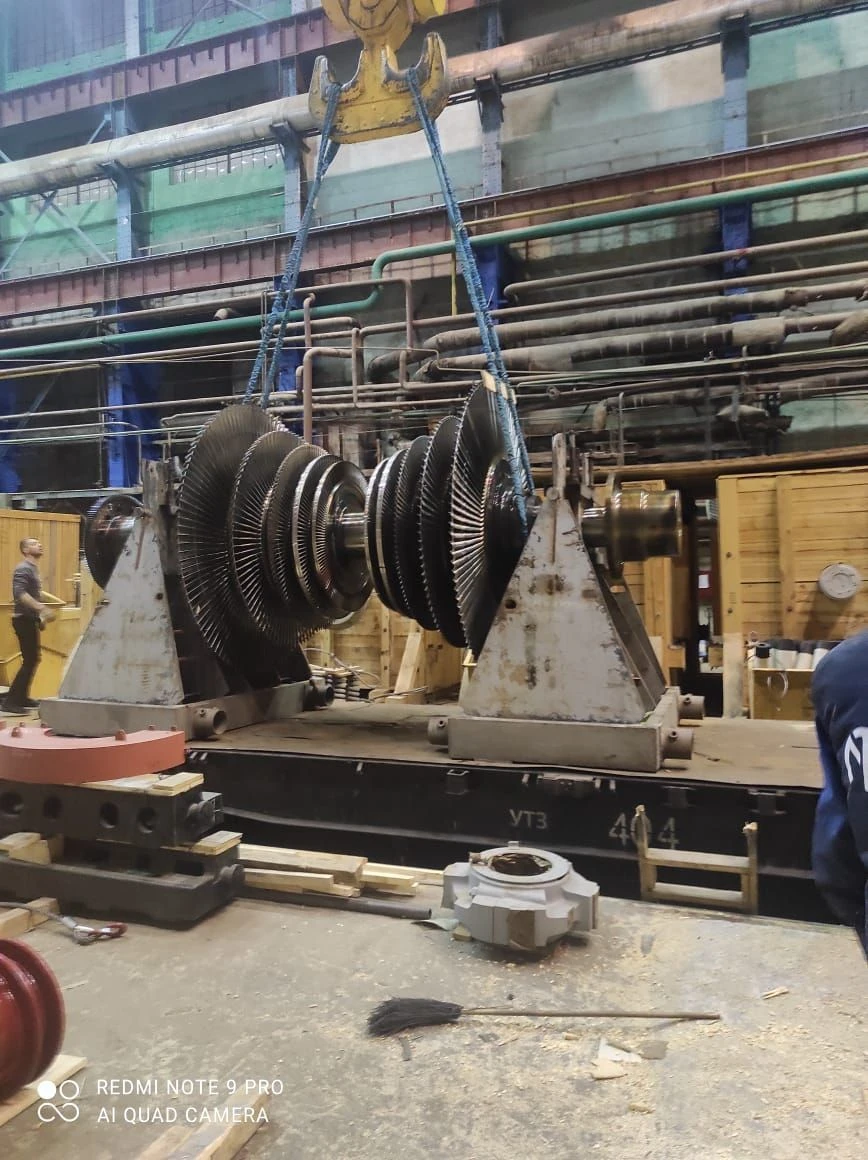

CND (low pressure cylinder) rotor, drawing 48T230-3275SBR, is a part of shafting of turbines K-110-90-7 or T-96/110-90 and is designed for torque transmission from high pressure rotor connected with it by semiflexible coupling, conversion of kinetic energy of the steam flow into torque on the shaft of the low-pressure rotor, as well as the transfer of the total torque on the rotor shaft of the generator connected to the low-pressure rotor rigid coupling.
Specifications
Material
steel 34xn3ma
Weight
17305 kg
Rotational speed
3000
Medium operating temperature
120 °C
MTBF
8000
Resource
200000
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
