Low Voltage Main Distribution Boards for Electrical Energy Management

Available for Import

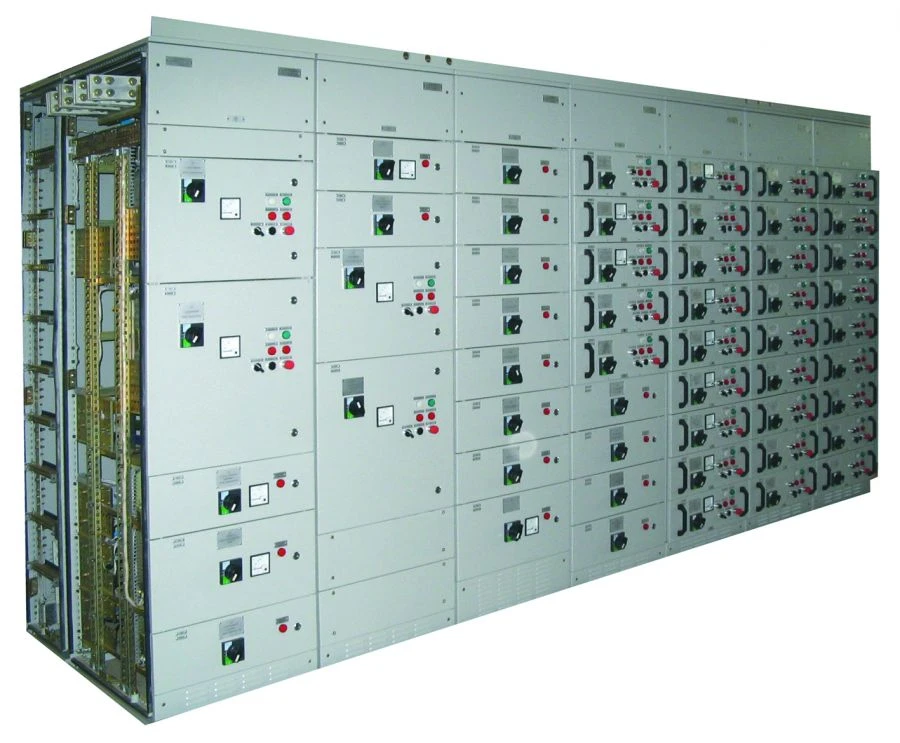

Low Voltage Main Distribution Boards for Efficient Electrical Energy Management

Low-Voltage Electrical Panels

Manufacturer: NEW ERA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Main distribution boards are designed to receive electricity with voltage 220, 380, 660V, frequency 50 Hz from generators or transformers, distribute it to the feeders of consumers, receiving electricity from the coastal source.
The capacity of one generator or transformer is up to 2000 kW with voltage 380 V, 50 Hz and up to 2500 kW with voltage 660 V, 50 Hz.
Maximum shore power feeder current 3000A at voltage 380V, 50 Hz.

Specifications

Busbar current

380 and 660 V sections - up to 4 kA; 220 V sections - up to 630 A A

Resistance of busbars to through short-circuit currents

Up to 150,000 (peak) A

Overall dimensions of sections

width 500-1200, height 1800-2200, depth 600-1000 mm

Nomenclature of sections

input (generator, transformer); control; jumper; distribution; power supply from shore

Maintenance

with front side or front and back sides

Type

GRSH

Climatic version

OM4

Degree of protection

IP21 and IP22

Housing material

Steel

Color

Light gray RAL7038

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
