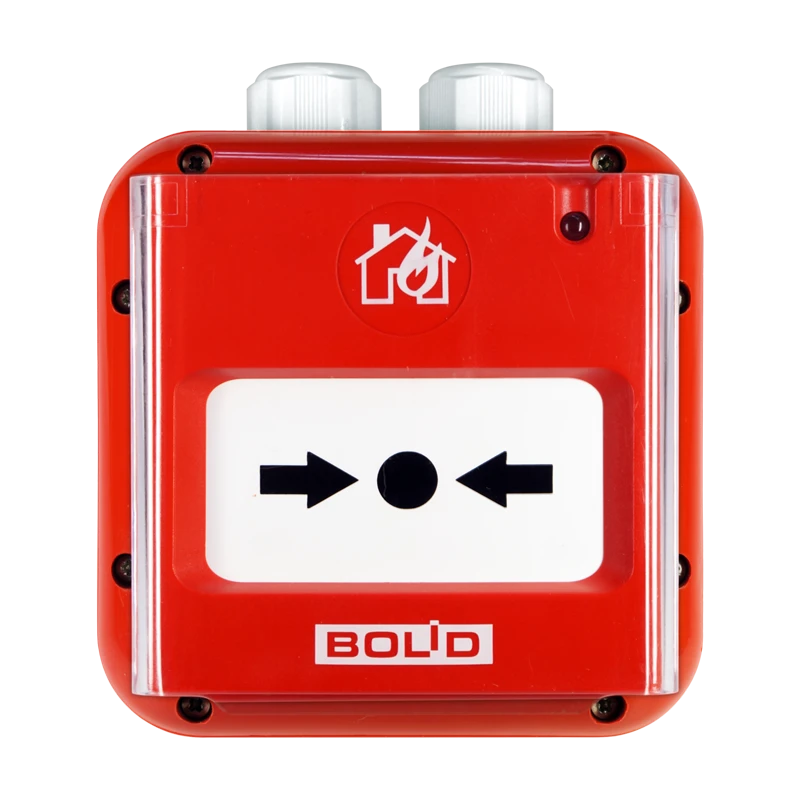

Available for ImportManual Addressable Fire Alarm Detector IPR 513-3AM IP67 for Fire Alarm Systems
Manufacturer:BOLID CJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
It is used in fire alarm systems and is designed for manual formation of fire alarm signal. Designed to work with controllers two-wire communication line as part of an integrated security system "Orion". The detector is equipped with a built-in short-circuit isolator.
Specifications
Power supply voltage (DPLS)
8 to 11 V
Consumption current
max. 0.6 mA
Consumption current when the short-circuit isolator is triggered
max. 3.3mA
Number of detectors to be connected in the DPLS
up to 127 pcs
Maximum active resistance of DPLS wires
Not more than 100 ohms
Minimum insulation resistance between DPLS wires
Not less than 50 kOhm
Protection degree of the shell according to GOST 14254-2015
IP67
Operating temperature range
-30 to +55 °C
Overall dimensions of the device
not more than 114x114x80 mm
Instrument weight
max. 0.35 kg
Average lifetime of the device
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
