Available for Import

Measurement and Recording System "SEITRONIC SIR-PG" for Pressure and Temperature Applications

Measurement and Control Devices

Manufacturer: Pipeline Systems Plant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

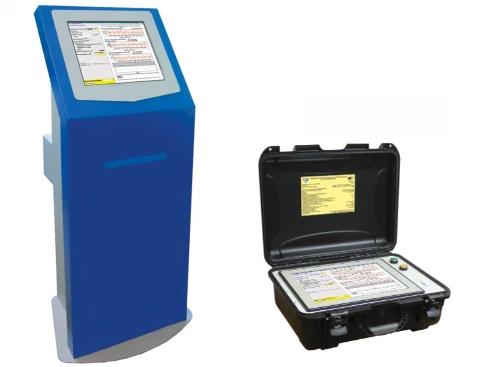

The system is designed to measure pressure, leakage value of the test medium, temperature of the test medium and ambient air, indication, registration and logging of test results of pipeline stop valves, safety valves, control valves, check valves and anti-exhaust equipment during tests in accordance with GOST 33257-2015: hydraulic and pneumatic tests for strength and tightness; tests of safety valves with registration of the value of trigger pressure. The system can be supplied in a terminal (stationary version) or in an industrial case (mobile version). It can be used both autonomously and in complex with equipment for testing of shut-off, safety pipeline valves, anti-exhaust equipment. The system is included in the register of measuring instruments.

Specifications

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Frequency, Hz

50±1

Pressure measurement range, MPa

0...160 (specific test pressure value to be agreed with the customer)

Measured water leakage range, cc/min

0…10

Measured leakage range for air, cc/min

0…12

Temperature measurement range, °C

5…70

Limits of permissible reduced error in pressure measurements, %

±0,4

Limits of permissible reduced error for water and air leakage measurements, %

±0,3

Absolute error tolerance limits for temperature measurements, °?

±1

Touchscreen, inches

From 15

Supply voltage, V

~198…242

Power consumption, V-A, not more

120

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
