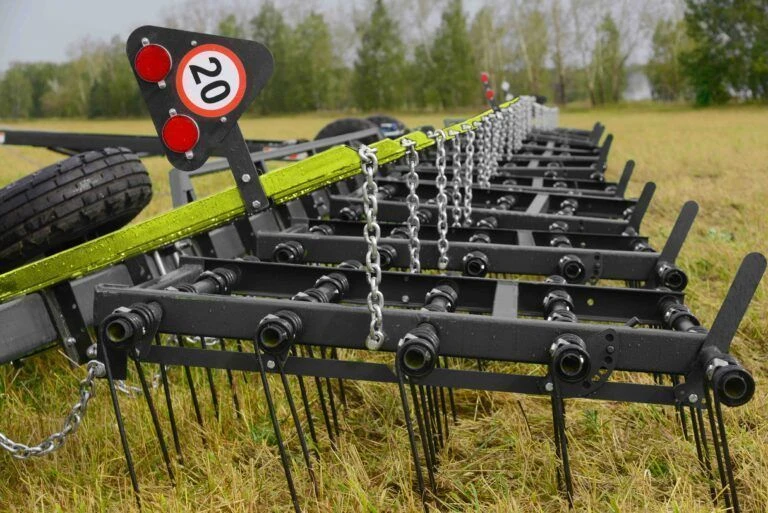

Medium Spring Harrow VELES BS-24.M Available for Import

Medium Spring Harrow VELES BS-24.M for Effective Moisture Retention

Tooth Harrows
Manufacturer: AZSM OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Unified medium spring harrows with working widths of 15.2 and 24.3 metres. Aggregated with tractors of traction class from 14 to 30 kN. They are designed for moisture closure before sowing spring and winter crops, maintenance of spring and winter crops - preservation of moisture in the soil and partial destruction of weeds, incorporation of mineral and organic fertilisers into the soil, maintenance of fallows and autumn provocation of weeds.

Specifications

Type of product according to PP RF 616
Tooth harrows
Harrow type
Zubovaya
Material of working elements
Steel
Material of frame structures
Steel
Working width
24 m
Capacity, ha/h
29.1
Height
900 mm
Width
17570 mm
Length
8300 mm
Number of working orans
16 pcs
Weight
3300 kg
Height in transport position
2.61 m
Width in transport position
3.92 m
Length in transport position
17.57 m
Tires
9.00-16
Angle of attack of teeth, deg
0 - 75
Tooth pitch
38 mm
Spring tooth length
415 mm
Spring tooth diameter
10 mm
Transport speed
20
Operating speed
18
Depth of treatment
6 cm
Required number of hydraulic terminal pairs
1 pcs
Type of aggregation
Trailed
Minimum power of the tractor to be coupled
150 hp

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
