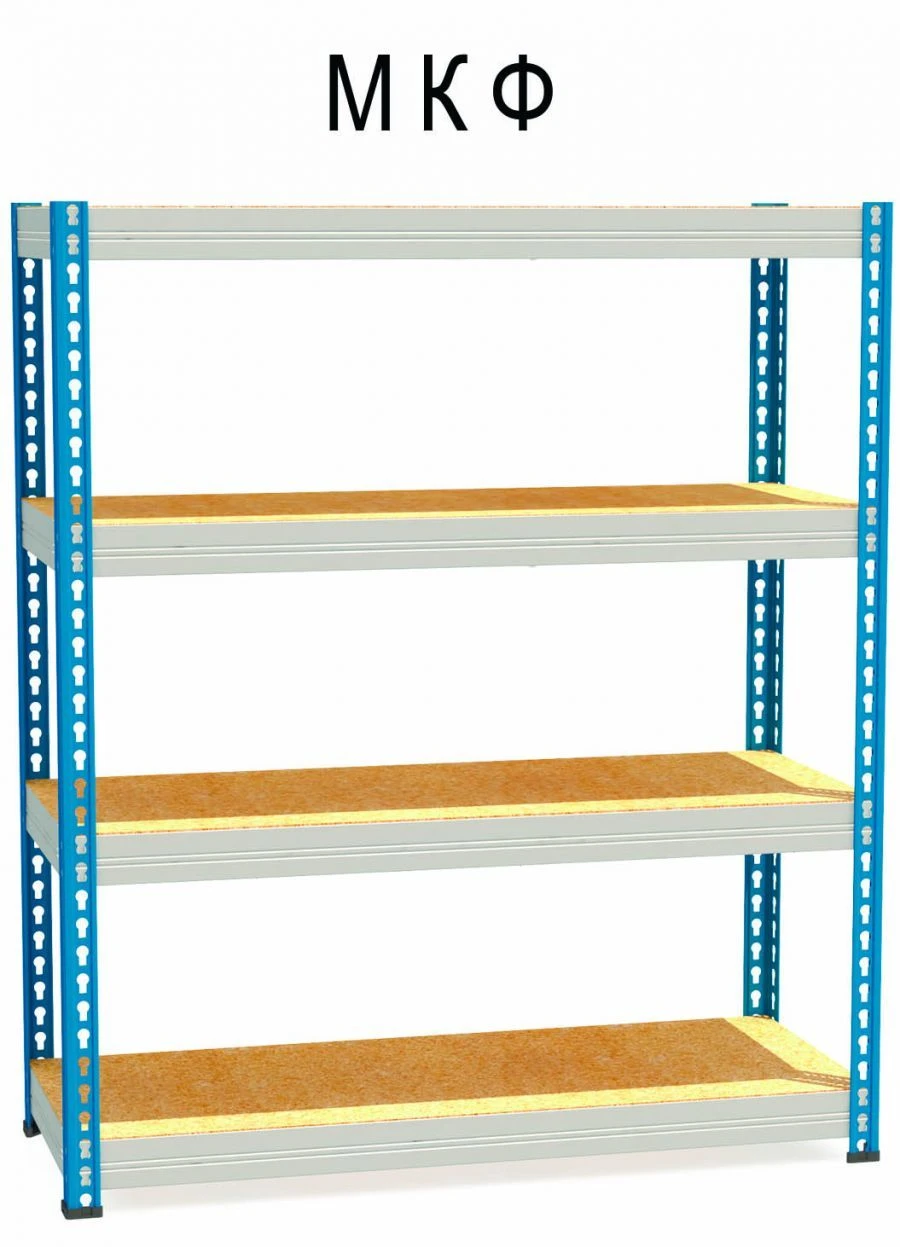

Metal Storage Racks MKF Series 15504-2.5 for Efficient Load Storage

Metal storage racks of MKF series are designed for storage of various cargoes. Permissible evenly distributed load on each tier - not more than 300 kg, load on the whole section - not more than 2100 kg. Shelf racks, prefabricated and demountable.

Peculiarities of the rack design allow assembly without additional fasteners. Profile of the MKF beam allows to use the rack in two variants: one side is intended for flooring, the other - for storage of car wheels. In the first variant each shelf (tier) consists of longitudinal and transverse) beams on which reinforced plywood is placed, in the second variant - only longitudinal and transverse beams.

The racking beams are fixed to the posts by means of two locks with hooks. Racks with the presented dimensions allow to store wheels with radius from 13" and above. The racks are painted with polymer (powder) paint RAL 5015 blue or RAL7035 light grey, the beams are painted in RAL7035 light...
