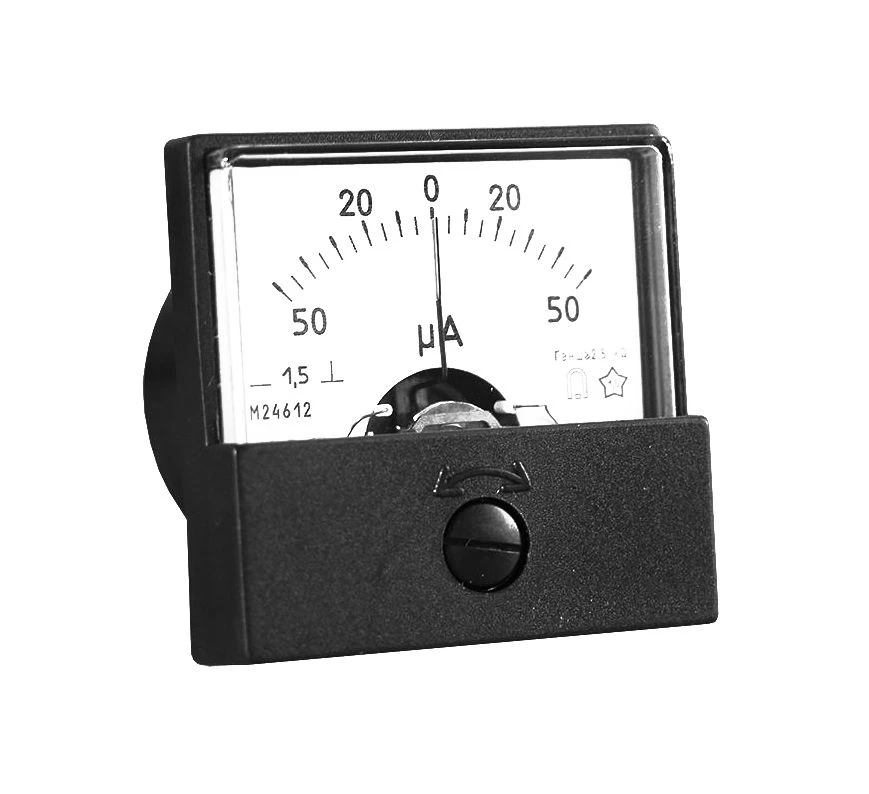

Microammeters and Millivoltmeters for DC Applications - M42612

Panel Analog Measuring Instruments

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Devices M42612 are designed to measure current and voltage in DC electric circuits in various industries. The devices are installed in shields with round cutouts. Location of the measuring mechanism in these devices is central.

The devices can be manufactured: with other measuring ranges and with scales calibrated in units of any physical quantities; with a zero mark at the edge or inside the measuring range. The dials and scales of instruments are made in accordance with GOST 5365-83. The instruments are verified in accordance with the requirements of GOST 8.497-83.

M42612 are included in the State Register of measuring instruments of the Russian Federation No. 68770-17. Interverification interval - 2 years.

Specifications

Dimensions of the front panel, mm

48x48

Panel cutout, mm

Ø42,5

Accuracy class

1,5; 2,5

Degree of protection IP

Dustproof IP50

Weight, kg, not more

0,12

Operating temperature range

-30 …+50 °C

Current measuring range (direct connection)

25 µA (only with zero mark in the middle of the measuring range scale); 30 µA(only with zero mark in the middle of the measuring range scale); 50 µA

Voltage measuring range (connection with a pair of 0.035 ohm calibrated wires)

25 mV; 50 mV; 75 mV; 150 mV; 300 mV; 500 mV; 750 mV; 1000 mV

Scale length, mm, not less
