Microprocessor Control, Regulation, and Diagnostics System for TEП70BS Locomotives - MСУ-ТЭА with Auto-Guide Function

Rail Locomotive Components

Manufacturer:VNIKTI OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

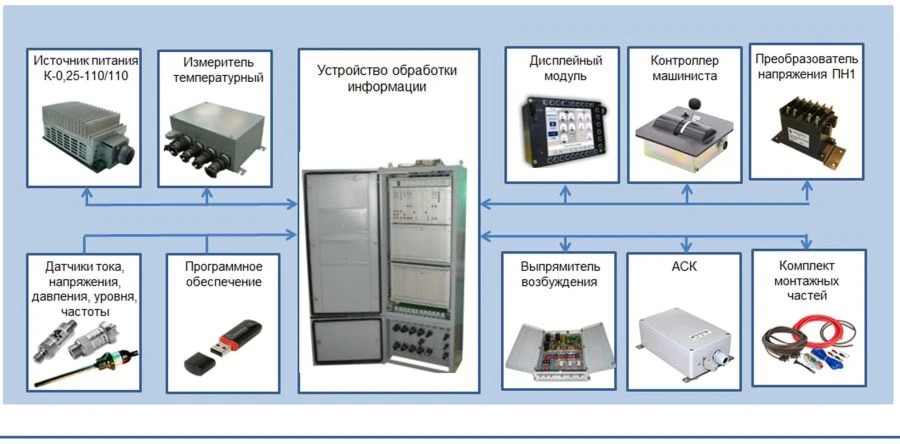

The microprocessor-based control, regulation and diagnostics system for TEP70BS diesel locomotives with an auto-tracking system with two-unit operation with two-wire power supply system (MSU-TEA) is designed to control and regulate the main and auxiliary equipment of locomotives, as well as to perform the functions of on-board diagnostic devices.

Specifications

Type of product according to PP RF 616

Components (spare parts) of railway locomotives, not having independent groupings

Mains voltage

110 V

MSU Failure Flow Parameter per 106 kilometres travelled

0...0.7 pcs

MSU operation mode

Continuous according to GOST 9219-88

Assigned service life of MSU

16 year

Ambient air temperature

-50...60 °C

Relative humidity at temperature +25 C

92...98 %

Atmospheric pressure

630...800

Conformity to operating group

M25 according to GOST 17516.1 (except for speed sensors of locomotive wheelsets, which correspond to group M27).

Compliance with fire protection requirements

MSU-TEA shall comply with GOST 12.1.004-91 and "General technical requirements for fire protection of traction rolling stock" CT-6

Version according to the method of protection of a person against electric shock

MSU-TEA shall be manufactured according to the method of protection of a person from electric shock according to the class "0" of GOST 12.2.007.0-75 for equipment up to 1000 V.

Warranty period of operation

Warranty service life - 2 years from the date of putting the locomotive into operation, but not more than 3 years from the date of shipment from the supplier's enterprise.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
