Modular Sectional Bath with Edge VSM-S-2.530-02-1-N for Versatile Applications

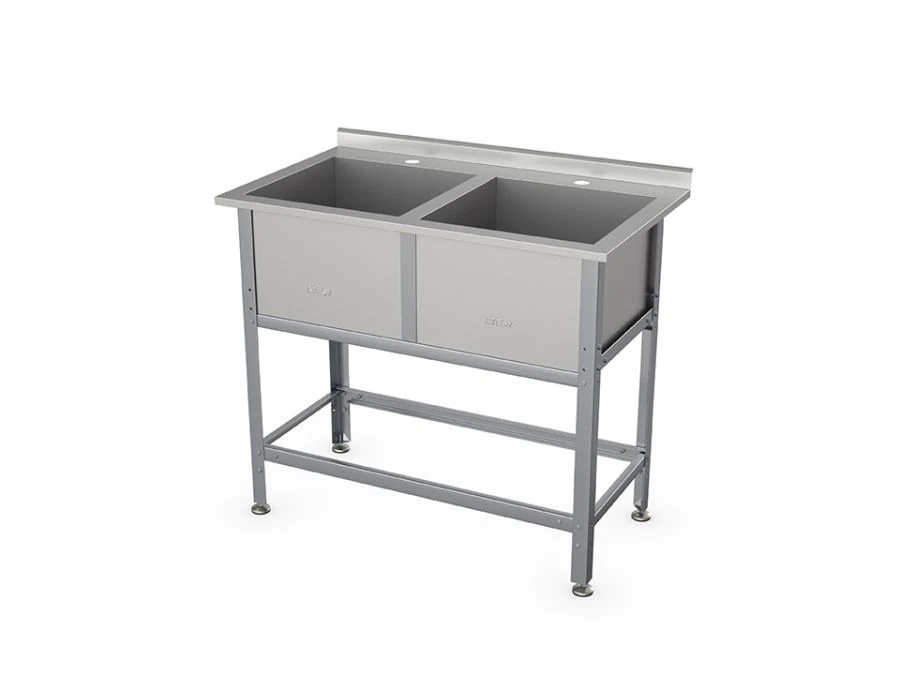

Sectional-modulated bath with a board. Dimensions (DxWxH): 1210x680x870 mm. It has 2 bathtubs with internal size 530x530x400 mm.

In the wall part of the bathtub there is a 50 mm high edge. All elements of the product have folded (folded) edges to prevent injury to personnel during assembly, operation and sanitisation of the product. Washing bath is two-sectional, the frame is collapsible.

The tubs are welded, made of stainless steel grade AISI304 0,8 mm thick. The corners of the bathtub are welded and cleaned. The frame is made of stainless steel AISI430 0,8 mm thick.

The frame posts are 40x40mm angles with folded edges to increase the rigidity of the structure and to avoid injury hazard. Under the bathtub there are two angles and two channels made of stainless steel AISI430 0,8 mm thick. At the bottom the frame is reinforced with two angles and two channels of stainless steel AISI430 0,8 mm thick.

The gap between the bathtubs is covered with a stainless steel panel. The support legs are height adjustable within 20mm and are made of...
