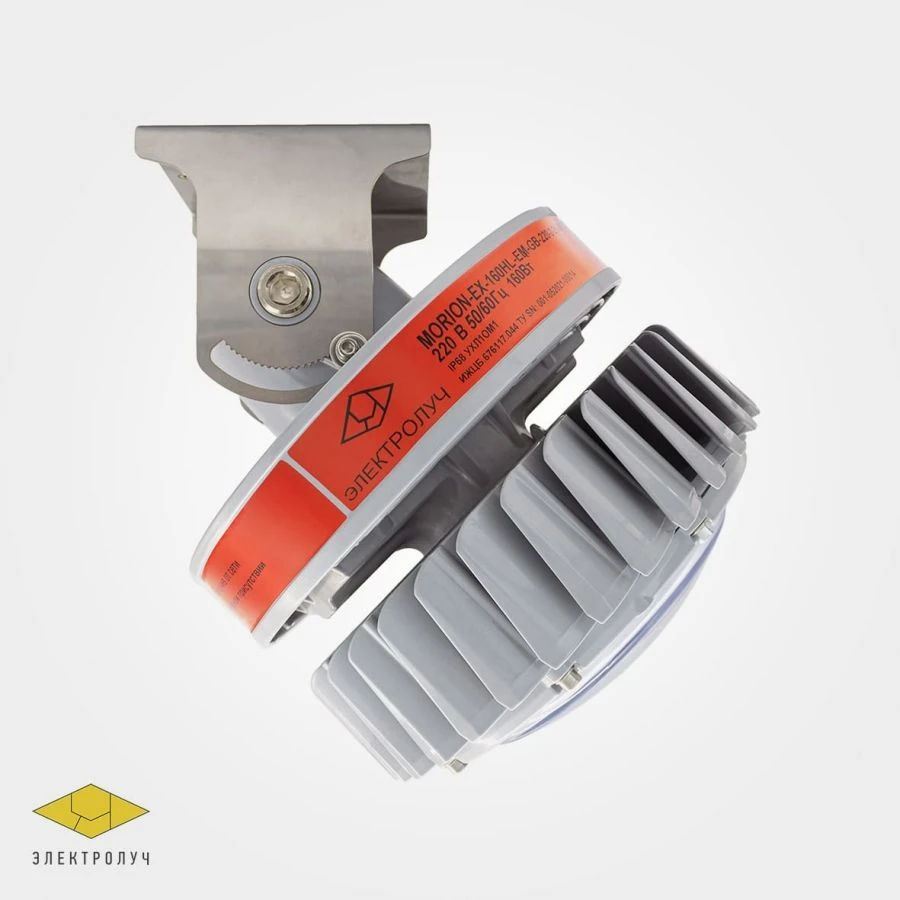

Morion-Ex-40-160-SB LED Explosion-Proof Light for Industrial and Outdoor Applications

Advanced LED Lighting

Manufacturer: ELEKTROLUCH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The luminaires are designed for outdoor and indoor lighting of industrial, production facilities, open areas and other areas where the presence of explosive atmospheres is possible. The power of the product 40-160 W. The luminaires are designed for operation in networks with nominal voltage of alternating current - 230 VAC.

Mounting method: mounting on a swivelling bracket. The luminaire has several types of diffusers: polycarbonate transparent, polycarbonate milky, flat tempered glass 19 mm. glass 19 mm, flat tempered glass 19 mm with a grid.

The design of the luminaire allows to realise both dead-end and transit cable installation. The luminaires can be operated in the temperature range from - 60°C to +65°C depending on the power of the of the product. Climatic design and placement category according to GOST 15150: UHL1, OM1.

Degree of protection IP: 68.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Type of supply current

Operating temperature conditions

-60...65 °C

Input voltage

230 V

Power consumption

40...160 W

Power factor

0.95

Protection class against electric current

Grade I

Luminous flux

5500...19000 lm

Pulsation factor

1 %

Correlated color temperature

3000 K

CRI color rendering index

Housing material

Aluminum alloy with magnesium content less than 7.5 %

Climatic version

UHL1; OM1

Degree of protection (IP)

IP68

Length

280...345 mm

Width

280 mm

Height

330...355 mm

Net weight

10.8...12.8 kg

Gross weight

11.2...13.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
