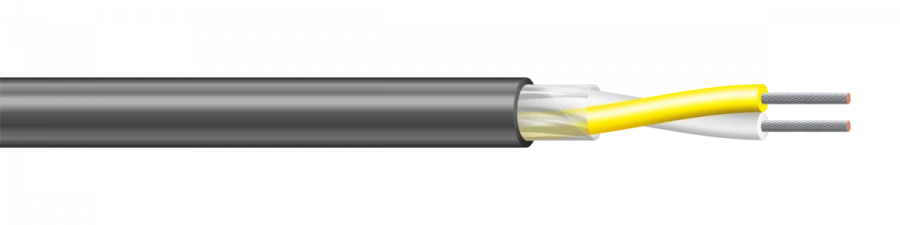

Multi-core PVC Insulated Installation Cable KMV for Reliable Fixed Installations
Manufacturer:
Podolsk Cable OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cable mounting multicore in polyvinylchloride sheath, designed for fixed installation of circuits and apparatuses operating at voltages up to 380 V AC of frequency 50 Hz or 500 V DC and up to 50 V AC of frequency up to 1000 Hz in.
Service life not less than 15 years at operation in the temperature range from minus 50 to +70 ° C..
Service life not less than 15 years at operation in the temperature range from minus 50 to +70 ° C..
Specifications
Core material
tinned copper multi-wire, (class 5 according to GOST 22483)
Insulation material
made of polymer and polyvinyl chloride plasticate
Twisting
The twisted insulated conductors are wrapped in plastic film. In each cable strand, two adjacent conductors (counting pair) differ in color from each other and from the other conductors of the strand.
Cladding
PVC plasticate
Climatic version
In accordance with GOST 15150-69
Application
The cable is designed for fixed installation of circuits and apparatuses operating at voltages up to 380 V AC 50 Hz or 550 V DC and up to 50 V AC up to 1000 Hz.
Execution
Quality category - OS
Section
0.75 mm²
Number of cores
2; 3; 5; 7 for 0.75 mm²
