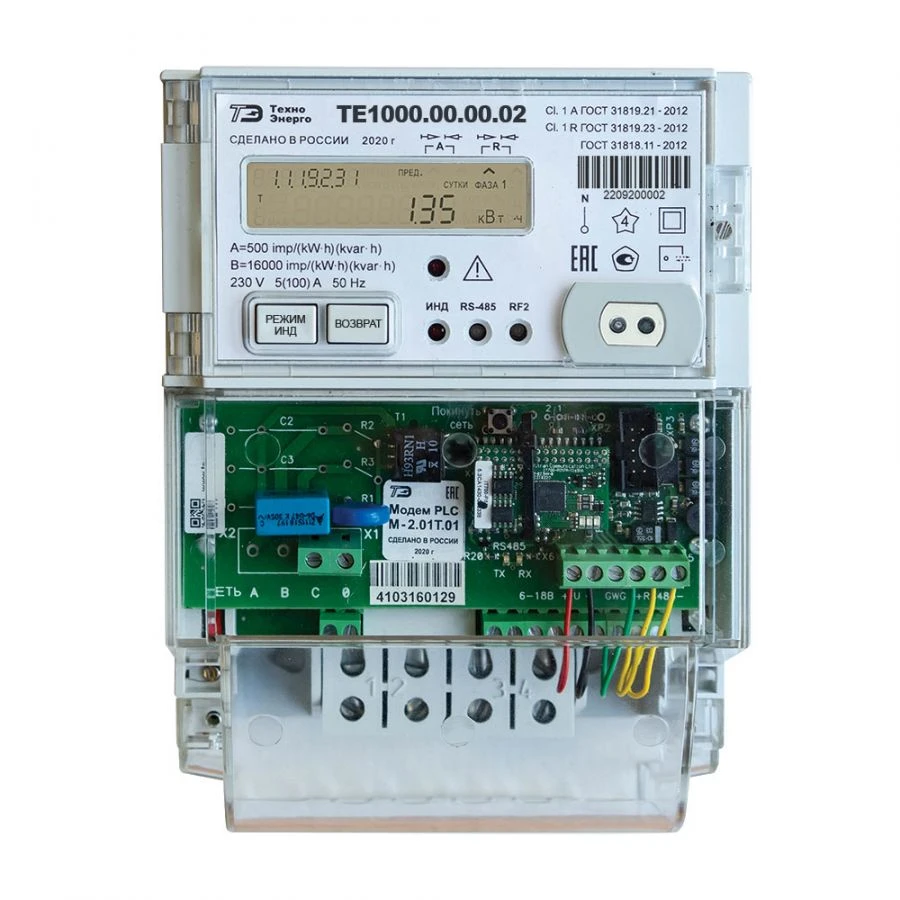

Multifunction Electric Energy Meter TE1000 for Accurate Energy Measurement

Electricity Meters

Manufacturer: TE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The meter is designed for measurement and multi-tariff commercial or technical metering of forward and reverse active and reactive energy and four-quadrant reactive energy in single-phase two-wire AC networks with nominal voltage 230 V, base (maximum) current 5 (100) A or 5 (80) A,
frequency (50 +- 2.5) Hz (8 metering channels)

Specifications

Number of phases

Type

energy meter

Accuracy class

1/1

Nominal voltage

230 V

Rated current

5 A

Mounting method

three-point mounting; DIN rail; split

Maximum current

100 A

Maximum operating temperature

70 °C

Minimum operating temperature

-40 °C

Type of metered energy

Active and reactive

Type of readout device

LCD

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
