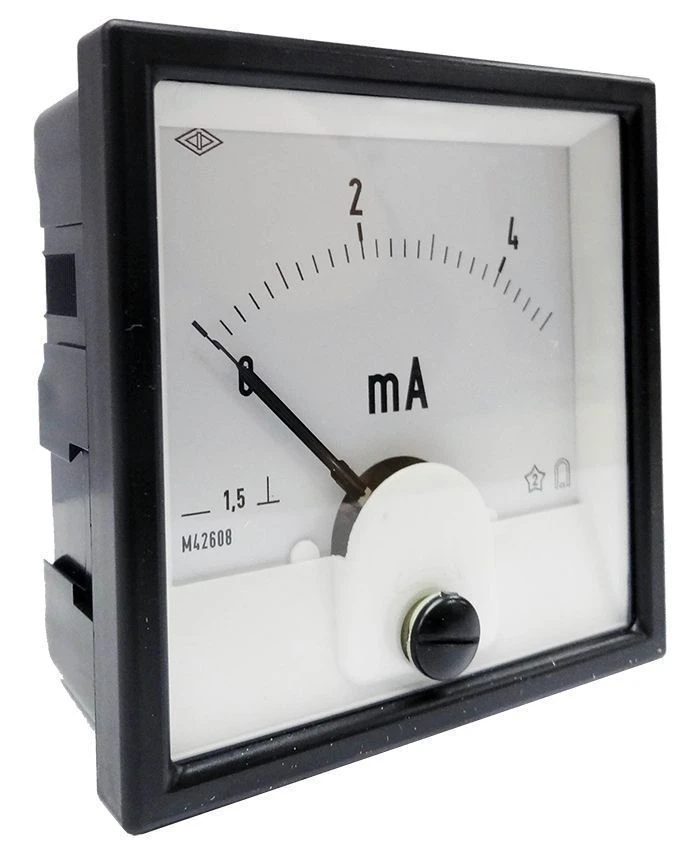

Multifunctional Microammeter, Milliammeter, Ammeter, and Voltmeter M42608 for Electrical Measurement

Panel Analog Measuring Instruments

Manufacturer:ELECTROPRIBOR OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The M42608 devices are designed to measure current and voltage in DC electric circuits in various industries. The devices are installed in shields with square cutouts. Location of the measuring mechanism in these devices is central.

The devices can be manufactured: with other measuring ranges and with scales calibrated in units of any physical quantities; with a zero mark at the edge or inside the measuring range. The dials and scales of the instruments are made according to Din 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83.

M42608 are included in the State Register of measuring instruments of the Russian Federation No. 68770-17. Interval of verification is 2 years.

Specifications

Dimensions of the front panel, mm

72x72

Panel cutout, mm

68x68

Accuracy class

1,5; 2,5

Degree of protection IP

Dustproof IP50 (for devices M42608 with "Sea Register" acceptance - IP54)

Weight, kg, not more

0,15

Operating temperature range

-30...+50 °?

Current measuring range (direct connection)

100 µA; 200 µA; 300 µA; 500 µA; 1000 µA; 1 mA; 5 mA; 10 mA; 15 mA; 30 mA; 50 mA; 100 mA; 150 mA; 300 mA; 500 mA; 600 mA; 1 A; 2 A; 3 A; 5 A; 10 A; 15 A

Current measurement range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires)

20 A; 30 A; 50 A; 75 A; 100 A; 150 A; 200 A; 300 A; 400 A; 500 A; 750 A; 1 kA; 1.5 kA; 2 kA; 4 kA; 6 kA

Voltage measuring range (direct connection)

2V; 3V; 7.5V; 10V; 15V; 20V; 30V; 50V; 75V; 100V; 150V; 250V; 300V; 400V; 500V; 600V

Voltage measuring range (connection with separate additive resistor with nominal current 5 mA)

1 kV; 1.5 kV; 3 kV

Scale length, mm, not less

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
