Non-Flame Propagation Control and Management Cable KRUEL-IK-(E)Rp(E)(B,K,S)-(z)-ng(A)-LS

Available for Import

Non-Flame Propagation Control Cable KRUEL-IK-(E)Rp(E)(B,K,S)-(z)-ng(A)-LS for Safety and Efficiency

Control and Signal Cables

Manufacturer:LLC "NPO "PZSK"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Control and monitoring cable KRUEL-IK-(E)Rp(E)(B,K,S)-(h)-ng(A)Cable thermoelectrode universal KRUEL-TK-(E)T(E)(B,K,S)-(h)-ng(A)Control and monitoring cable KRUEL-IK-(E)T(E)(B,K,S)-(h)Control and monitoring cable KRUEL-IK-(E)F(E)(B,K,S)-(h)Control and monitoring cable KRUEL-IC-(E)Pc(E)(B,K,S)-(h)-ng(A)-HF

Description

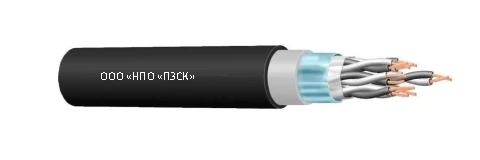

Cable of management and control not spreading combustion, with reduced smoke and gas emission, with cores of copper or copper coated wires, with the number of cores, pairs, triples, fours from 1 to 91, nominal cross-section of cores from 0,2 to 16 mm2, with insulation made of ethylene propylene rubber, shielded or unshielded, armoured or unarmoured, intended for use in electrical installations for rated voltage up to 1000V inclusive (100, 250, 500, 660 and 1000V AC) with frequency up to 400Hz.
The cable is manufactured for general industrial application for delivery to the domestic market and for export, including countries with tropical climate.

Specifications

Insulation material

Ethylene propylene rubber (Rp)

Rated AC voltage

1000 V

Number of conductive cores, pairs, triples, quadruples

1...91

Nominal cross-section of conductive cores

0.2...16 mm²

Presence of individual and/or shared metal shielding

No screen, a screen of aluminized composite material with a contact conductor (E), of copper wires (Em), of tinned copper wires (El), combined, of aluminized composite material and tinned copper wires (Ek), and

Filling material

Belt insulation made of material according to cable version (h), water-absorbing elements (c), filling with silicon paste (pz)

Availability of reservations

No armor, armor made of galvanized steel bands (B), aluminum alloy bands (Ba), corrugated tape laminated with polymer (Bg), galvanized steel wires (K), galvanized steel wires over outer sheath (Kg), wires of

Outer sheath material

according to cable version

Fire hazard class

P1b.8.2.2.2.2.

Cross cable shape

Round

Design of conductor core(s)

Multi-wire round, single wire round (ok);

Operational design

M, UV, Tc (Tc125, Tc200), X, Y, PUR

Climatic version

UHL, UHL1, CHL, CHL1, AHL, M, OHM, TM, T

Ambient temperature during cable operation

-60...80 °C

Frequency

400

Core material

Copper, tin-plated copper(l), nickel-plated copper(n)

Number of pairs

1...91 pcs

Core diameter

0.56...6.15 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
