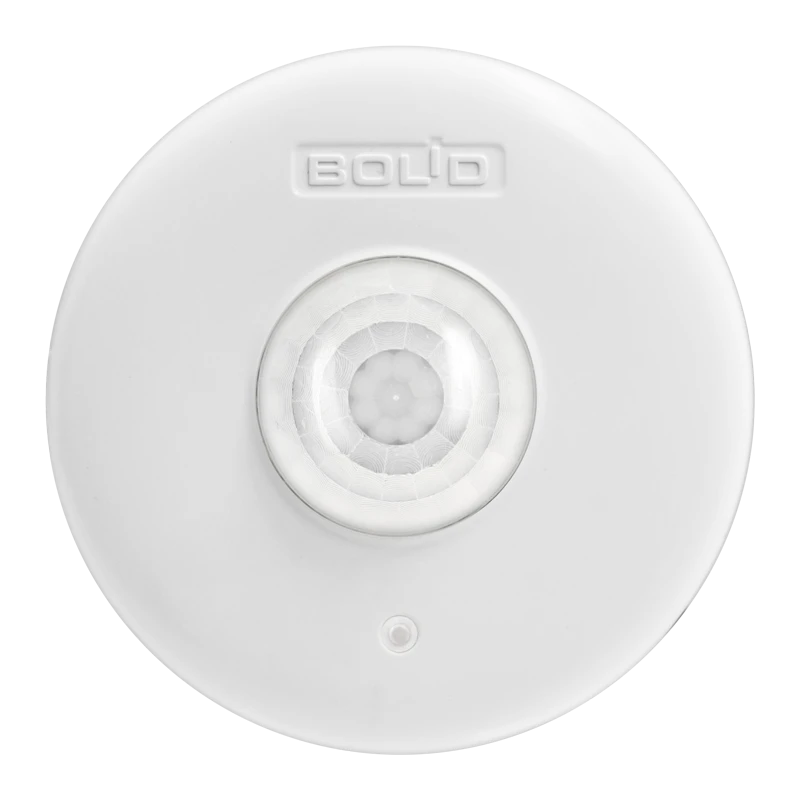

Available for ImportOptical-Electronic Passive Infrared Security Detector "Gracia Model 02" for Intrusion Detection
Manufacturer:BOLID CJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for detection of intrusion (attempted intrusion) into the protected space of a closed room by infrared radiation analysis. The detector transmits the alarm state by opening the relay contacts. The detector transmits the tamper status by opening the tamper contacts.
Specifications
Supply voltage (DC)
10...30 V
Average current consumption in "Normal" mode
Not more than 2,3 mA
Average current consumption in "Alarm" mode
max 3.5 mA
Maximum current through relay contacts
100 mA
Maximum voltage on relay contacts
30 V
Maximum current through tamper contacts
100 mA
Maximum voltage on tamper contacts
30 V
Diameter of detection area (at height 2.5m / 3.6m)
12 / 12 ?
Detection speed range
0,3...3 metres/second
Resistance to ambient light
not less than 6500 lx
Protection degree of the shell according to GOST 14254-2015
IP41
Operating temperature range
-30 to +40 °C
Overall dimensions of the device (H x W)
38x90 mm
Instrument weight
0.1 kg
Average lifetime of the device
8 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
