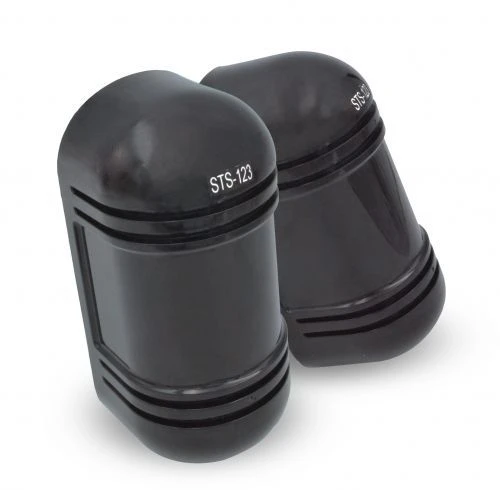

Optical-Electronic Security Detector STS-123 for Intrusion Detection

Intrusion and Fire Detectors

Manufacturer: OSNOVA BEZOPASNOSTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Linear two-position optical-electronic security detector STS-123 is designed to detect a person crossing the protected boundary.
Areas of application^
- as an independent means of security signalling
- as part of perimeter security systems and extended boundaries
- as part of complex security systems
Design:
- the detector consists of transmitting and receiving units placed at opposite ends of the protected area on the fence or on special supports (supports are purchased separately)
- the transmitting and receiving units are made in plastic housings and are equipped with heaters
- transmitting and receiving units are equipped with light indicators "Power" and "Alarm", as well as a digital signal level indicator.
Capabilities:
- formation of IR beams between the receiver and transmitter and issuing an alarm notification when they are crossed by an intruder
- detection of unauthorised opening of the case and the issuance of an alarm notification
- transmission of alarm...

Specifications

Duration of alarm notification

Overall dimensions of each unit

170x81x78 mm

Operating temperature range

-40...50 °C

Maintaining performance under conditions of high relative humidity at 30°C

98 %

Alarm output in case of case opening

Armoured glass

Time of duty mode recovery

Time of detector technical readiness

Interference immunity of the product from sun and light sources powered by DC sources

30000

Interference immunity of the product from AC powered electric lighting devices

2000

Effective beam width

20 cm

Interface type

RS-485, TTL

Wavelength

9.2E-7 m

False alarm lifetime

1200

Average MTBF of the product in standby mode

60000

Weight

1 kg

Protection against ingress of solid bodies (dust) and water

IP 54

Heating current consumption of each unit at 12 V supply voltage

0.15 A

Current consumption at 12 V supply voltage

0.04 A

DC power supply voltage

9 V

Number of IR working channels

4 pcs

Number of IR beams working synchronously

2 pcs

Detection zone length

100 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
