Optical-Electronic Temperature Measurement Module MDTS Available for Import

Optical-Electronic Temperature Measurement Module MDTS for Precise Temperature Monitoring

Temperature Measurement Devices
Manufacturer: INVERSION-SENSOR LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

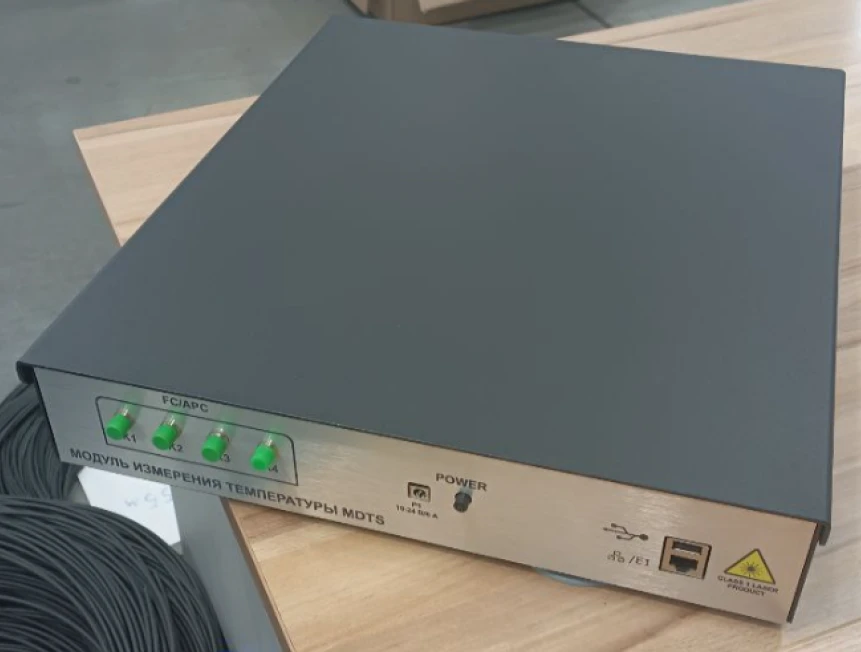

DSAE.421100.007 Optical-electronic temperature measuring module MDTS. The principle of operation is based on the measurement from the probing optical pulse of forced Raman scattering, the intensity of which depends on the temperature. Designed for integration into a continuous temperature monitoring system.

Allows to monitor the temperature profile in real time, can be used as a sensor in linear-extended objects, or rooms with large areas. It can also be used in fire safety monitoring systems, monitoring of power cables, monitoring of oil production facilities, monitoring of technological processes, monitoring of concrete curing.

Specifications

Sensing element type
Multimode optical fibre
Limit state of the line (PE length)
8000 m
Temperature measuring range
-50...150 °C
Absolute error of temperature measurement
+-2
Temperature resolution
not regulated
Measurement time, for one channel
10
Rated supply voltage
B1/B8 2100/900 MHz V
Operating range of supply voltage
9...28 V
Power consumption, max.
B1/B8 2100/900 MHz W
Weight, not more
6 kg
Overall dimensions
340x410x80 (mm)
Overall dimensions, mm max.
340x410x80

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
