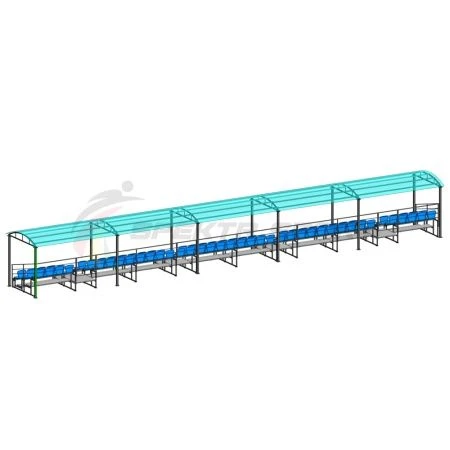

Outdoor Spectator Grandstand for 100 Seats with Canopy for Events

Tribune is designed to accommodate spectators at sporting events.It is installed outdoors.The frame of the grandstand is made of profile pipe section 40x40x2, 40x40x1,5, 40x20x1,5.The railing is made of profile pipe 40x20x1,5, 30x30x1,5, 15x15x1,5.Number of rows - 3.Number of aisles - 4.Number of seats - 100.Height of steps - 200 mm.Height of seats from the floor level - 450 mm.Distance between seat centres - 500 mm.Width of aisle between rows - 800 mm.Roof (canopy) of the grandstand is made of polycarbonate 8 mm thick. (The floor covering is made of laminated plywood 15 mm thick. The metal frame is painted with powder paint.

Paint colour is optional according to RAL catalogue.Seats - Arena. Colour of seats - at the customer's request.
