Outdoor Telecommunications Cabinet 650x950x500 - Model ШТУ-Т-650х950х500-ВК

Available for Import

Outdoor Telecommunications Cabinet 650x950x500 for CCTV and Traffic Monitoring

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

???-?-650?950?500-??. Telecommunication outdoor cabinet designed to accommodate video surveillance equipment, photo and video fixation of traffic violations. Mounting on a special support.

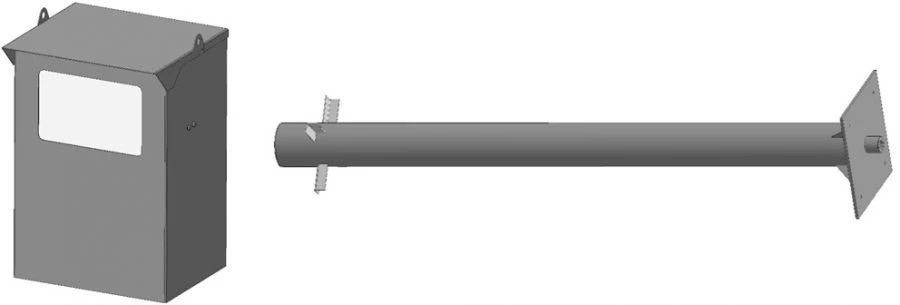

The length of the support is 2200mm. The product is an outdoor vandal-proof telecommunication cabinet for round-the-clock protection of the traffic violation detection complex, batteries and/or moulage (imitator) of the FVF complex installed inside from illegal actions of third parties, as well as from the impact of precipitation, dirt, dust and other weather and road conditions. The enclosure is made of 3.0 mm thick steel in the form of an all-welded construction and is painted with light grey powder paint (RAL 7035).

The door of the box is made of 3.0 mm thick steel, mounted on concealed internal hinges. The keyhole is protected by a 4 mm thick armour plate. The armour plate is fixed on the door on M6 screws with a semicircular head made of stainless steel for a special key..

Specifications

Availability of radio-penetrating glass

Armoured glass

Slots

Availability of fasteners to the support (pole)

Type of accommodation

outdoor

Operating temperature range

-40...50 °C

Connector

Cable type

Device type

Outdoor telecommunication cabinet

Form factor (rack-mounted, freestanding)

freestanding

Type of optical ports

Depth

500 mm

Protection class

IP54

Equipment

support for installation (pipe)

RAM

Number of processor cores

Number of processors

Weight

150 kg

Length

500 mm

Height

950 mm

Width

650 mm

Type of accommodation

outdoor for surface mounting

Type of construction

unassembled

Usable depth

500 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Availability of fasteners to the support (pole)

Armoured glass

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

SBVVBG °C

Availability of a shelf for mounting equipment

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
