Outdoor Telecommunications Cabinet for Equipment - SHU-C-400x600x300-MP

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

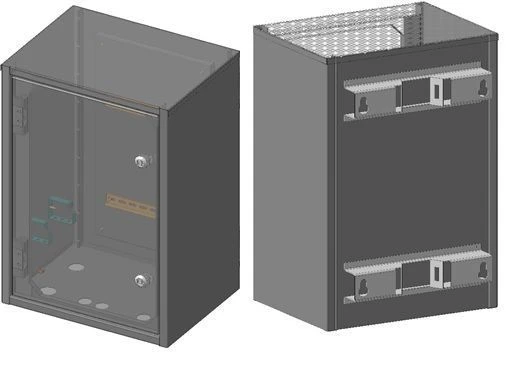

???-C-400x600x300-??. Telecommunication outdoor cabinet for placement of telecommunication equipment in outdoor conditions with the possibility of mounting on the wall or to a street pole (support). IP 54 enclosure with mounting plate.

The cabinet design provides reliable protection from climatic influences. The degree of protection of the cabinet from external conditions is not less than IP54. The case of the product SHTU-400x600x300-MP is made of steel 1.5 mm thick as an all-welded construction.

It is painted with light grey powder paint (RAL 7035). The enclosure door is made of 1.5 mm thick steel. The door is mounted on concealed internal hinges, equipped with a mechanical lock with a single key "master" for a group of cabinets.

To mount equipment, inside the cabinet provided DIN-rails and mounting plate.

Specifications

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

SBVVBG °C

Availability of mounting plate

Armoured glass

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

hinged outdoor

Operating temperature range

-40...50 °C

Connector

Cable type

Device type

Outdoor telecommunication cabinet

Form factor (rack-mounted, freestanding)

freestanding

Type of optical ports

Depth

300 mm

Protection class

IP54

Equipment

fixing to pole (support)

RAM

Number of processor cores

Slots

Number of processors

Weight

25 kg

Length

300 mm

Height

600 mm

Width

400 mm

Type of accommodation

outdoor for surface mounting

Type of construction

All-welded

Usable depth

300 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Armoured glass

Type of coloring

Powder

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
