Available for Import

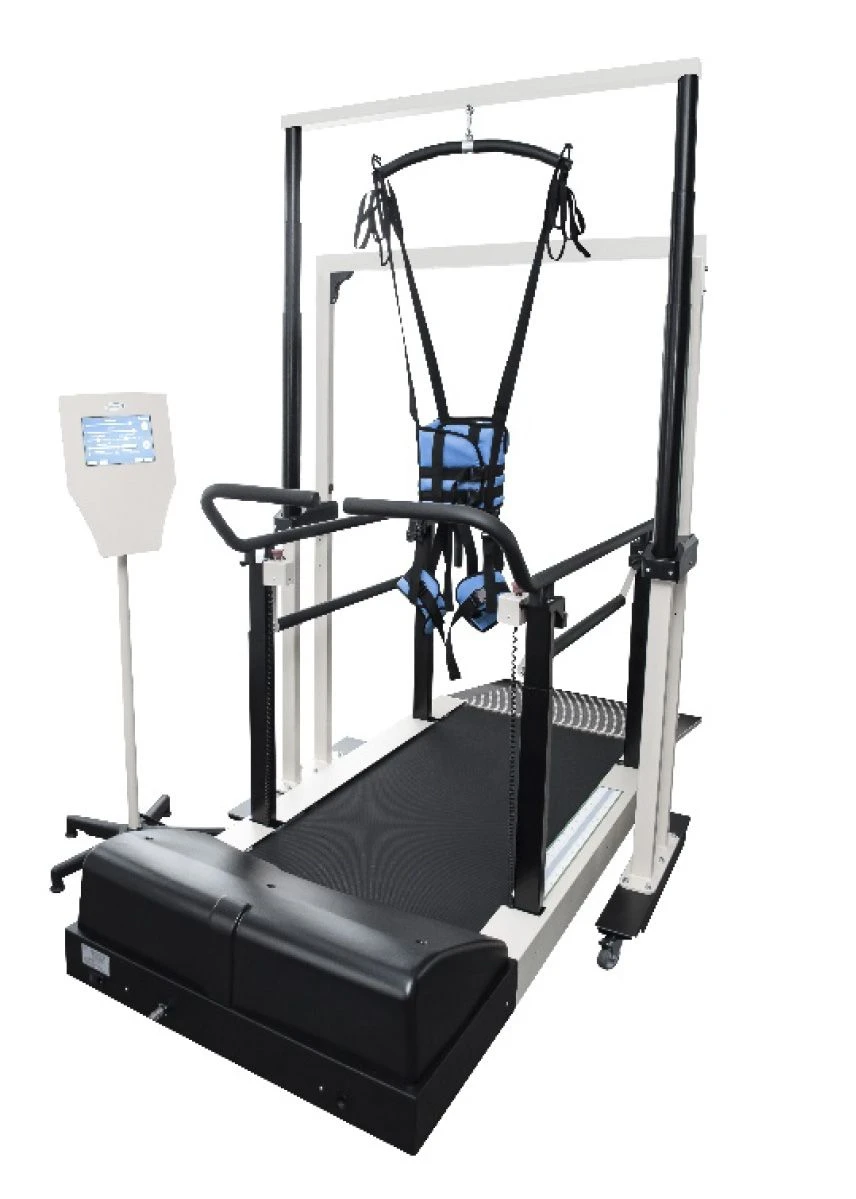

Patient Verticalization Rehabilitation Suspension "Ortorent S+" for Effective Mobility
Manufacturer:
Ortorent LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The rehabilitation suspension for verticalisation of the patient "Orthorent", designed to lift and support the patient for the purpose of transfer or training with adjustable load on the lower limbs.
The suspension can be used for rehabilitation after injuries, for rehabilitation after strokes, for joint diseases of the limbs and for diseases accompanied by muscle weakness and movement coordination disorders.
Scope of application: in the conditions of medical and preventive institutions: in the conditions of gymnastic and rehabilitation halls, rooms for LFK and AFK; as well as at home..
The suspension can be used for rehabilitation after injuries, for rehabilitation after strokes, for joint diseases of the limbs and for diseases accompanied by muscle weakness and movement coordination disorders.
Scope of application: in the conditions of medical and preventive institutions: in the conditions of gymnastic and rehabilitation halls, rooms for LFK and AFK; as well as at home..
Specifications
Equipment
Rehabilitation suspension for verticalisation of the patient "Ortorent", in variants of execution. Model "Ortorent C + (stationary with treadmill)";Control panel;2-button;Set of fasteners (set);Treadmill;Ramp to the treadmill.
Treadmill dimensions (without ramp) (WxDxH)
2200 mm
Overall dimensions of the treadmill (with ramp)
2960 mm
Overall dimensions in working condition of the suspension with treadmill and patient entry ramp (WxDxH)
2960 mm
Working size of the treadmill (WxD)
1710 mm
Handrail spacing
500...865 mm
Height adjustment range of side rails
500 mm
Height of side handrails from the track surface
680...1180 mm
Handrail diameter
40 mm
Minimum thickness of deck
21 mm
Diameter of transport rollers (wheels) integrated into the base of the track for easy movement
45 mm
Changing the treadmill inclination angle
0...7
Treadmill weight
170 kg
Ramp weight
B1/B8 2100/900 MHz kg
Maximum patient weight
150 kg
Patient height from gender
1100...2000 mm
Treadmill speed in the range
0.1...13
Increasing the speed of the treadmill step by step
0.1
Treadmill power consumption
1100 W
Treadmill cushioning system - number of elastomers
B1/B8 2100/900 MHz pcs
Electrically adjustable treadmill patient support handrails
2 pcs
Overall dimensions of the hanger (WxDxH)
1900 mm
Internal distance between suspension struts
1240 mm
Distance between suspension handrails
995...1075 mm
Transport castors (wheels) integrated in the base of the hanger for easy handling
4 pcs
Diameter of suspension transport rollers (wheels)
75 mm
Suspension weight
75 kg
Electric suspension lift actuator
2 pcs
Maximum power of each drive
800
Suspension power consumption
300 W
Time required to move from the lowest to the highest position with maximum permissible load
30
Minimum continuous operation of the models
8
Maximum time for setting the operating mode
3
Infinitely adjustable to the patient's height by means of a button integrated in the stand
availability
The maximum height of the undercarriage (base height including wheeled chassis) for lifting a patient from a bed, couch or bedsi
110 mm
The treadmill has a control panel with colour touch-screen display.
10.1
Biofeedback system through sensors that synchronize the treadmill with the patient's stride
availability
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
