Photovoltaic Cell String HVL 5BB for Solar Energy Conversion

Available for Import

Photovoltaic Cell String HVL 5BB for Efficient Solar Energy Conversion

Solar Power Components

Manufacturer: HEVEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

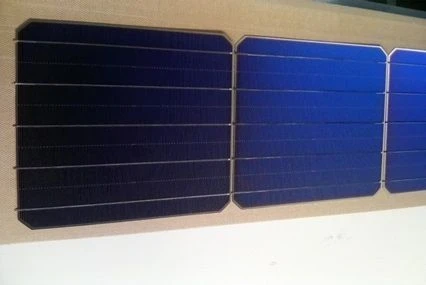

Photovoltaic cell chains convert solar radiation into DC electricity and are designed for the manufacture of photovoltaic modules. The photovoltaic cells are made of pseudo-square wafers of monocrystalline n-alloyed silicon with deposited layers of amorphous silicon, transparent conductive layers and printed conductive grid, the front and back contacts are in the form of textured anti-reflective TSO coating. The elements are connected in series chains using BusBur technology.

Each chain is formed by connecting the elements in series using conductive adhesive and solder-coated copper busbars. Cross bars can be included in the PV chain delivery set. The number of elements in the chain is determined by the order specification.

In the production process we use in-house developed technology.

Specifications

Weight, g

Cell connection technology

adhesive technology of cellular connection with 5 basbar tyres

Short-circuit current tolerance

5 %

Tolerance of no-load voltage

5 %

Production capacity tolerance

5 %

EFFICIENCY

23 %

Technology

hjt - heterostructure technology for photovoltaic cell production

Cell type

?2+ ???????????????????

Thickness

0.4 mm

Width

157.35 mm

Length

157.35 mm

Power

5.6 W

Number of cells

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
