PLC Modem for External Device Communication G2-NEWSAP - Seamless Integration for RS485 and Ethernet Interfaces

Integrated Communication Equipment

Manufacturer:OJSC "OKB "GIPERCOM"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Can be used for interrogation of external devices with interfaces RS485, Ethernet and via PLC network. Any IP devices can be connected to the Ethernet interface. IP stack support, including PLC level.

Connection of the PLC interface to the mains via the G2XXCAPYY coupling device (on customer request). Modem role: master/client. PLC-modem is a stationary equipment.

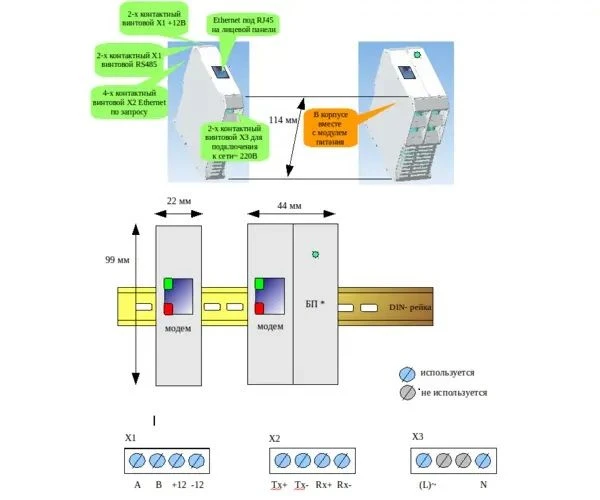

Structurally PLC - modem is made in a plastic case designed for installation on a DIN-rail 35 mm.

Specifications

Input voltage

7-12 VDC (without power supply unit)/ 140-270 ADC V

Power consumption

3 W

Temperature range

-40...70 °C

MTBF

100000

Gold content

0.1 year

Relative humidity at temperature 25C

20...90 %

AC frequency

50...60

Bandwidth of frequencies used

2...34

Data transfer rate

up to 50

MAC address table size

32 pcs

Number of PLC connections in one segment

14 pcs

Number of VLANs

4 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
