Pneumatic Spray Patch Repair System Madpatcher for Dump Trucks

Available for Import

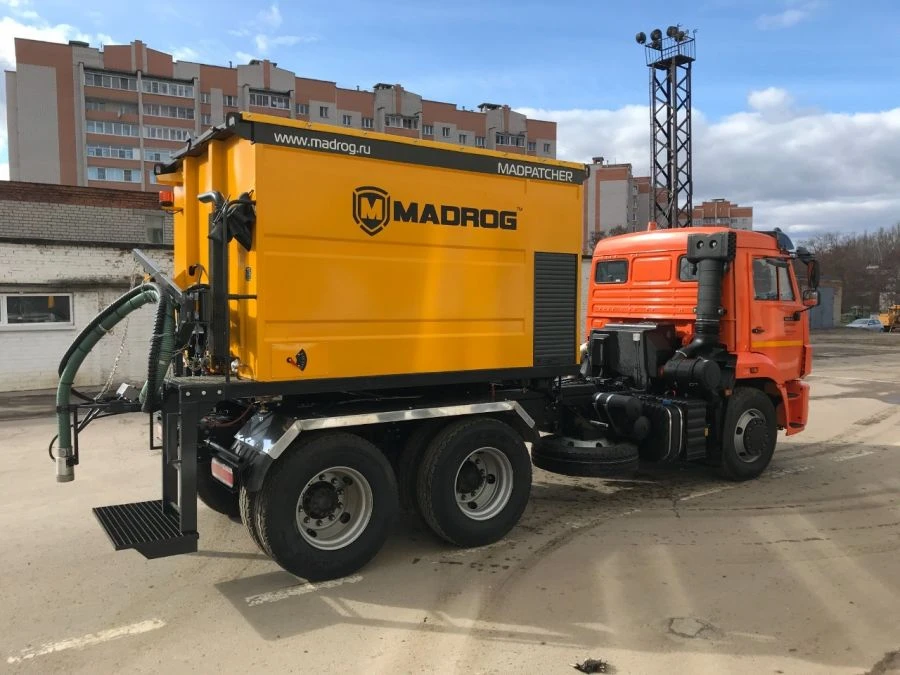

Pneumatic Spray Patch Repair System Madpatcher for Efficient Road Repairs

Municipal Road Vehicles

Manufacturer:MADPRO LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Applied on urban roads and motorways. The jet-injection method has proven itself over many years worldwide.

Specifications

Emulsion tank volume

1300 l

Base machine type

Motor vehicle (chassis)

Engine type

Diesel

Emulsion heating type

Gas

Crushed stone hopper capacity

4...7

Availability of air conditioning system

availability

Availability of heater

availability

Type of product according to PP RF 616

Vehicles for public utilities and road maintenance

Type of equipment of the combined road machine

Patching by pneumatic spraying method

Base chassis type

Vehicle chassis/tipper body

Purpose

Road patching by jet-injection method with a mixture of crushed stone and bitumen emulsion.

Maximum capacity of ready-mix equipment per hour

Length dimensions

4250 mm

Width dimensions

2290 mm

Height dimensions

2100 mm

Weight

3200 kg

Type of autonomous motor

Diesel

Cooling of the autonomous motor

Liquid

Number of cylinders of autonomous diesel engine

4 pcs

Autonomous motor power

25...40 hp

Fuel tank capacity of the self-contained engine

40 l

Computer control of the autonomous engine

availability

Location of the fuel filler neck on the fuel tank of the self-contained engine

Rear (on the operator boom side)

Blower drive

Two V-belts from the engine

Adjusting the emulsion flow rate of the feed pump

stepless

The following processes can be electronically controlled from the operator panel

Emulsion pump on/off, emulsion pump capacity adjustment, internal combustion engine speed adjustment, auger speed adjustment, auger stop, engine economy mode on, audible alarm

Placement of the operator panel

On the boom

Raising and lowering the operator boom

??????????????

Positioning of the operator boom

rear

Boom swing angle

240

Feed hose length

4 m

Feed hose diameter

80 mm

Sleeve material

Reinforced PVC plastic

Number of crushed stone hopper compartments

1 pcs

Crushed stone hopper compartment volume

6.5

Crushed stone hopper awning

availability

Enclosed compartment for transportation and storage of equipment

availability

Emulsion tank insulation

mineral wool

Emulsion level indicator

availability

Emulsion tank filler neck location

Rear (on the operator boom side)

Gas burner for initial heating of emulsion

availability

Heat exchanger for permanent emulsion heating, utilizing heat from the engine coolant while the engine is running

availability

Tank capacity for flushing and preserving the emulsion system

40 l

Location of the tank filling neck of the emulsion supply cleaning system

Rear (on the operator boom side)

Number of augers metering crushed stone

1 pcs

Screw drive

Hydraulic

Screw speed adjustment

stepless

Operating instructions and spare parts catalog in Russian in hard copy and electronic format

availability

Mounting kit for the installation of a patching machine

Subframe; plates against lateral displacement, not less than 2 pcs.; ladders for fastening in assembly, not less than 6 pcs.

Type

Patching by pneumatic spraying method

Machine type

Dump truck, chassis

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
