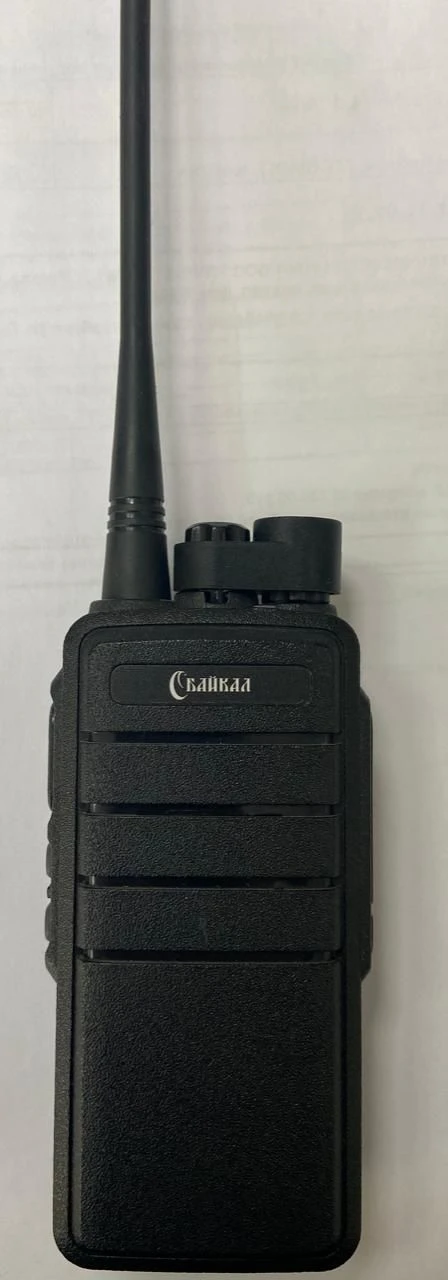

Portable Radio Station Baikal-100 VSTDR for Communication Needs

Radio operation modes: analogue; digital Communication standard DMR Frequency range, MHz - 146-174; 400-470 Number of channels, pcs. - 32 Frequency grid pitch in analogue mode, (programmable), kHz - 12.5/25 Receiver sensitivity at signal-to-noise ratio at 12 dB SINAD, µV - 0.25 Transmitter output power (programmable), W - 5; 10 Suppression of out-of-band emissions, dB, not less than 65 Rated output sound power at a load of 16 Ohm, mW 1000 Supply voltage, V 7,4 Maximum deviation of supply voltage, % ± 20 Degree of protection IP IP54 Battery type Li-Ion Battery capacity, mAh 3000 Charger supply voltage, V 100-240 Mains frequency for charger connection, Hz 50-60 Overall dimensions (L×W×H), mm 160×65×45 Weight (without rechargeable battery), kg 0,194 Battery operation time (at 5-5-90 cycle), hr <ul> <li>- in digital mode 12 h</li> <li>in analogue mode 8 h</li> </ul>Battery charging time 3 h
