Power Cable with Aluminum Conductor AAP2LShV-1 3x240+1x120(oz) Available for Import

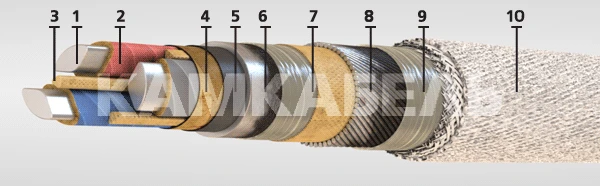

Power Cable with Aluminum Conductor AAP2LShV-1 for Harsh Climate Applications

Aluminium Power Cables 1kV
Manufacturer: KAMSKY CABLE LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Power cable with aluminium core AAP2LShV-1 4x185(ozh) Power cable with aluminium core AAP2LShV-1 3x70+1x35 Power cable with aluminium core AAP2LSHV-1 4x70(ozh) Power cable with aluminium core AAP2LSHV-1 3x95+1x50 Power cable with aluminium core AAP2LSHV-1 3?185+1?95

Description

Cables are designed for operation in macroclimatic regions with temperate and cold climate. Cables are designed for operation in the ground (trenches) with high corrosive activity with the presence of stray currents, if during operation the cables are subjected to significant tensile forces (bulk, swampy, boggy and perennially frozen soils, vertical sections of routes). Cables do not spread combustion in single laying (IEC 60332-1 norms).

Specifications

Mark
AAP2LSHV-1
Number and cross section of conductors, pcs x mm2
3?240+1?120(ozh)
Estimated cable weight, kg/km
7054
Outer diameter
60.2 mm
Rated DC voltage
2.5 kV
Rated AC voltage with frequency 50 Hz
1 kV
Operating temperature range
-50...50 °C
