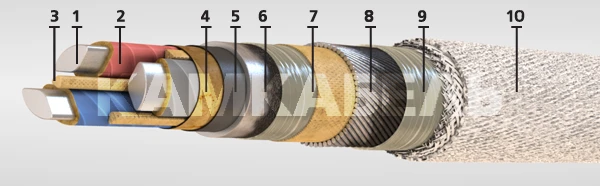

Power Cable with Aluminum Core AAP2LShV-10 for Harsh Environments
Manufacturer:KAMSKY CABLE LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cables are designed for operation in macroclimatic regions with temperate and cold climate. Cables are designed for operation in the ground (trenches) with high corrosive activity with the presence of stray currents, if during operation the cables are subjected to significant tensile forces (bulk, swampy, boggy and perennially frozen soils, vertical sections of routes). Cables do not spread combustion in single laying (IEC 60332-1 norms).
Specifications
Mark
AAP2LSHV-10
Number and cross section of conductors, pcs x mm2
3x240(ozh)
Estimated cable weight, kg/km
7844
Outer diameter
65.5 mm
Rated DC voltage
25 kV
Rated AC voltage with frequency 50 Hz
10 kV
Operating temperature range
-50...50 °C
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)
Payment Methods
