Power Cable with Plastic Insulation up to 1kV AVVGng(A) for Safe Electrical Installations

Aluminium Power Cables 1kV

Manufacturer: GOSTKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

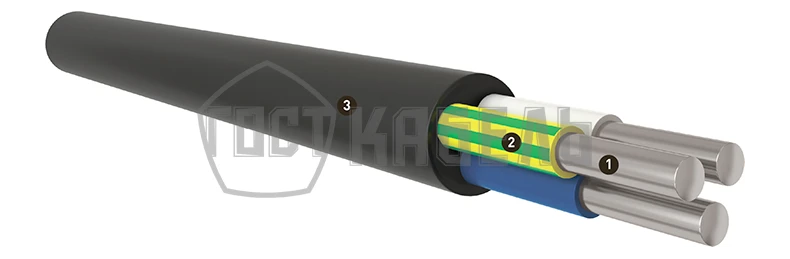

Cable round with aluminium cores, with insulation and outer jacket made of PVC plasticate, not spreading combustion in category A. The cable is manufactured for operation in areas with temperate, cold and tropical climates. The cable is designed for operation on land, rivers and lakes at an altitude of up to 4 300 m above sea level. It is used in the air if there is no danger of mechanical damage during operation; for laying in dry or damp rooms (tunnels), channels, cable half floors; in mines, collectors, production facilities, partially flooded structures in the presence of medium with weak, medium and high corrosivity; for laying on special cable trestles, on bridges and in blocks.

Specifications

Mark

AVVVGng(A)

Core material

Aluminum

Insulation material

Polyvinyl chloride plasticate with distinctive coloring

Sheath material

polyvinyl chloride plasticate of reduced flammability

Calculated weight

1 kg

Number of cores

1,2,3,4,5 pcs

Core cross section

2,5;4;6;10;16;25;35;50;70;95;120;150;185;240 mm²

Nominal cross section of phase conductors

2,5;4;6;10;16;25;35;50;70;95;120;150;185;240 mm²

Number of phase conductors

1,2,3,4,5 pcs

Laying and installation of cables without preheating is carried out at temperature

at least -15 °C

Long-term permissible core heating temperature during operation

No more than 70 °C

Short circuit duration

No more than 5

Permissible heating temperature of cable cores in overload mode

Not more than 90 °C

Limit temperature of core heating under conditions of short circuit non-flammability

no more than 350 °C

Test alternating voltage with frequency 50 Hz at 0.66 kV

3,5 kV

Maximum AC voltage of frequency 50Hz at 0.66 kV

0,72 kV

Maximum AC voltage of frequency 50Hz at 1 kV

1,2 kV

Filler material

Polyvinylchloride plasticates for internal filling

Test alternating voltage with frequency 50 Hz at 0.66 kV

3 kV

Insulation material of phase conductors

Polyvinyl chloride plasticate with distinctive coloring

Climatized version

-50...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
