Power Cables with Plastic Insulation for Voltage up to 1 kV PvVG

Available for Import

Power Cables with Plastic Insulation for Voltage up to 1 kV - Suitable for Various Applications

Copper Power Cables 1kV

Manufacturer: GOSTKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

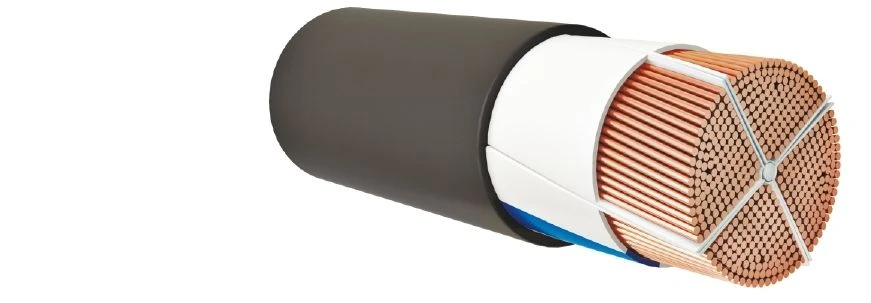

Cable round with copper conductors, with insulation made of cross-linked polyethylene and outer jacket made of PVC plasticate. The cable is designed for operation on land, rivers and lakes at an altitude of up to 4,300 metres above sea level. It is used at moderate and cold temperatures. It is used in the air in the absence of danger of mechanical damage during operation; for laying in dry or damp rooms (tunnels), channels, cable half floors; in mines, collectors, production facilities, partially flooded structures in the presence of medium with weak, medium and high corrosivity; for laying on special cable trestles, on bridges and in blocks.

Specifications

Mark

PvVVG

Design

Conducting core, insulation, outer jacket

Sheath material

polyvinyl chloride plasticate

Insulation material

Cross-linked polyethylene with distinctive coloring

Cable shape

Round

Core cross section

70;95;120;150;185;240 mm²

Number of cores

1,2,3,4,5 pcs

Number of conductive cores

1,2,3,4,5 pcs

Nominal cross-section of conductive cores

70;95;120;150;185;240 mm²

Laying and installation of cables without preheating is carried out at temperature

at least -15 °C

Long-term permissible core heating temperature during operation

No more than 70 °C

Short circuit duration

No more than 5

Permissible heating temperature of cable cores in overload mode

Not more than 90 °C

Limit temperature of core heating under conditions of short circuit non-flammability

no more than 350 °C

Test AC voltage of 50 Hz frequency at 1 kV

3,5 kV

Maximum AC voltage of frequency 50Hz at 0.66 kV

0,72 kV

Maximum AC voltage of frequency 50Hz at 1 kV

1,2 kV

Size (Number of cores x Cross-section)

1x70 to 1x240; 2x70 to 2x240; 3x70 to 3x240; 4x70 to 4x240; 5x70 to 5x150

Operating temperature range

-50...50 °C

Number of wires in the core

19...37 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
