Power Distribution Unit with 14 Outputs and Circuit Breakers - LPDU-14P

Available for Import

Power Distribution Unit with 14 Outputs and Circuit Breakers for Efficient Power Management - LPDU-14P

Low-Voltage Electrical Panels

Manufacturer:LES-TV LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

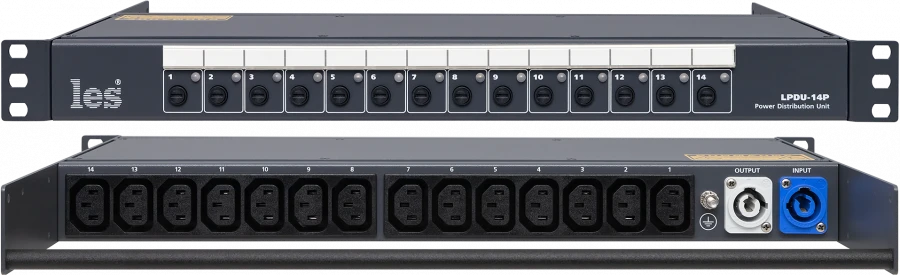

Power distribution unit for 14 IEC C13 connectors. Voltage input and pass-through output are made on powerCON 16A connectors. All IEC C13 output connectors are numbered and located on the rear panel of the enclosure.

On the input side, the unit has a filter to suppress electromagnetic interference. Each LPDU output has an overload protection, a fuse, each fuse has an LED indication of the presence of voltage, above the fuses there is a marker strip. On the sides of the distributor there are mounting angles to install it in a 19" rack, if necessary, the angles can be turned 180 °.

The LPDU is supplied with an input cable connector and unloading bar. The warranty period is 36 months.

Specifications

Power supply voltage

230 V

Maximum load on each output

10 A

Installable fuse

5 A

Maximum total load on LPDU including loop-through connector

16 A

Maximum working input voltage

250 V

Peak input voltage

390 V

Peak current of input varistor overvoltage protection

6500 A

Maximum input surge energy absorbed

140

Electromagnetic interference suppression at 1MHz (typical)

Type of output connectors

IEC 60320 C13

Number of outputs

14 pcs

PowerCON input connector (Neutrik)

NAC3MPA-1

Output (feed-through) connector powerCON (Neutrik)

NAC3MPB-1

Operating temperature range

5...40 °C

Overall dimensions (W - H - D)

483...44 mm

Weight

3.32 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
