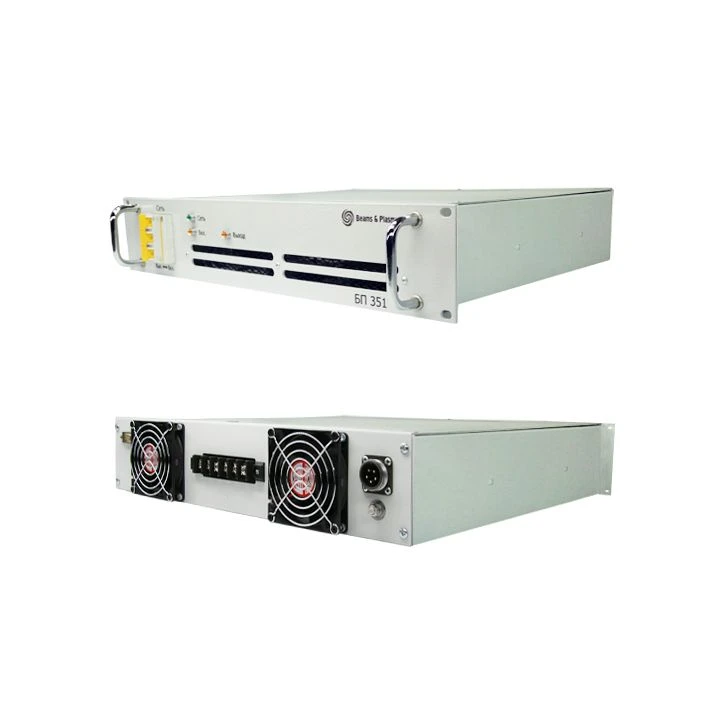

Power Supply for Ion Source - 1 kW for Vacuum Coating Applications

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Power supply unit is designed The unit is intended for power supply of ion source with power up to 1 KW used in vacuum coating units. The power supply unit is equipped with: <ul> <li>- RS-485 interface for communication with a computer</li> <li>Modbus RTU control</li> <li>voltage stabilisation mode with current limitation</li> <li>fast current breakdown protection</li> <li>arc protection (programmable) on voltage reduction</li> </ul> *The operating manual is available on request: LCMK.351.00.00.00.00.000 RE Power supply unit 351 It is allowed to deliver the device as part of the installation without packaging. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Supply of regulated DC voltage power for ion sources up to 1 KW for use in vacuum coating units.

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Type of construction

Built-in, Stationary

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage

380 ±10% V

Voltage regulation range

300-3000 V

Current control range

0,15-0,35 A

Power control range

45-1000 W

Maximum power

1 kW

Maximum power output

1000 W

Stabilization modes

current-limited voltage

Output voltage polarity

Positive

Protection against breakdown

Fast current initialisation

Arc protection (programmable)

on voltage reduction

Power supply connection diagram

TN-S Power supply connection diagram - TN-S (five-wire with deaf-earthed neutral, with separate execution of zero working and zero protective conductors)

Accuracy of stabilized parameter maintenance, not worse than

3 %

Interface

RS-485

Data transfer protocol

ModBus RTU

Cooling

Air

Overall dimensions, (length x width x height)

2U - 483 x 488 x 88

Weight, not more

8 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
