Efficient LED Industrial Lighting - ARENA LE-СБУ-66

Powerful LED Modular Lighting Fixtures for Industrial Use - ARENA LE-СБУ-66

Manufacturer:LED-EFFECT LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

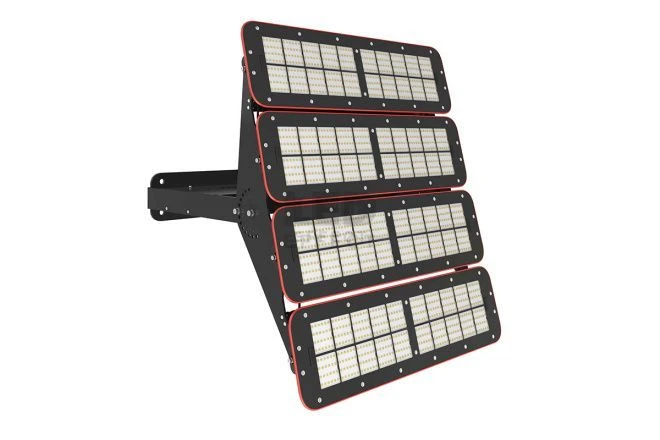

Series ARENA - high-power LED luminaires of modular type for lighting of industrial facilities. FINFREE technology has made it possible to raise the efficiency of the luminaires to 160lm/W. The luminaires are designed for mounting on walls or lighting trusses.

The luminaires are equipped with a bracket with discrete adjustment of the angle of inclination of the luminaire, there is also an adjustment of the angle of inclination of each light section of the luminaire, which allows optimal targeting of the luminaire. To create the necessary light environment the luminaires can be equipped with secondary optics, which allows to form the distribution of light flux required by the consumer. The luminaires are available in the modification with power supply on board, also the version with remote power supply is possible.

The luminaires have a high degree of protection against environmental impact - IP67.

Specifications

Assignment
For sports arenas
Availability of solar panel
no
Housing material
Aluminum, steel
Electrical safety class
1
Protection class of the luminaire
1
Type of light distribution of the spotlight
?
Color temperature
2700...1200 K
Luminous flux
192000 lm
Power
420...1200 W
Power
220...1200 W
Luminous flux
35000...192000 lm
Color temperature
2700...6500 K
Spotlight type
flooding
Scattering
diffused, narrowly orientated
Type of spotlight
LED
Availability of motion sensor
no
Luminous flux
67000...192000 lm
Installation method
Lyra
Radiation color
white
Color temperature
2700...5700 K
Type of luminaire
ice
IK code
8
Correl. color. temp. (CPT)
2700...6500 K
Color rendering index (Ra), greater than or equal to
80-95
Ripple factor, less than or equal to
1 %
Luminaire length
746...959 mm
Luminaire width
747 mm
Luminaire height
195 mm
Pulsation factor
1 %
ELECTRICAL SAFETY CLASS.
1
Light distribution class
?
Lower operating temperature value
SBVVBG °C
Color rendering index (Ra)
80...95
Correlating color temperature (CCT)
2700...6500 K
Power factor
0.95
Power consumption, W
220...1200 W
Rated supply voltage
220...230 V
Gross weight
25...35 kg
Upper operating temperature value
SBVVBG °C
Type of supply current
AC
Protection class against electric current
1
Gross weight
15...30 kg
Power consumption, W
420...1200 W
Correlating color temperature (CCT)
4000 K
Color rendering index (Ra)
80...90
Lower operating temperature value
45 °C
Operating temperature range
45...50 °C
Luminaire width
870 mm
Luminaire length
953 mm
Color rendering index (Ra), greater than or equal to
80-90
Correl. color. temp. (CPT)
2700...5700 K
Power factor, greater than or equal to
0.95

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
