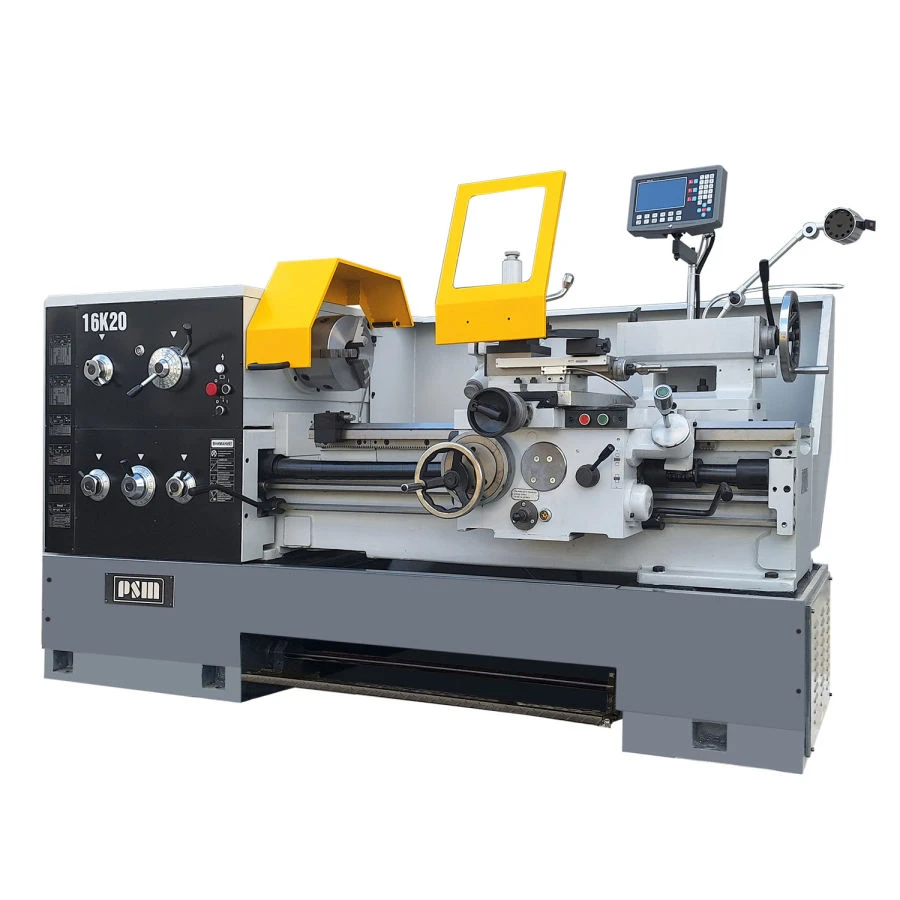

Precision Lathe Machine 16K20 - Versatile Shaping & Threading

Precision Lathe Machine 16K20 for Shaping, Threading, and Drilling

Manufacturer: Promstroymash LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The main purpose of the lathe 16K20 - turning workpieces of various shapes, cylindrical, tapered and shaped surfaces, threading, trimming and machining ends, drilling, countersinking and reaming holes. They are also used for prototyping new designs or modifying existing ones. Depending on the type of work on the lathe, different types of materials can be used: steel, cast iron, brass, bronze, aluminium, plastic and others. Lathes allow you to perform high-precision work at speeds of up to several thousand revolutions per minute.

Specifications

Type of product according to PP RF 616
Lathes
Center distance between centers (CDC)
1000 mm
Machining diameter above the bed
500 mm
Machining diameter above the slide
300 mm
Diameter of through hole in spindle
82 mm
Frequency limits for direct spindle rotation
9...1600
Stroke of cross slide
360 mm
Stroke of the upper slide
145 mm
Main drive power
7.5 kW
Cooling pump capacity
0.09 kW
Coolant tank volume
15 l
Dimensions (DxWxH)
1300 mm
Weight
2400...3000 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
