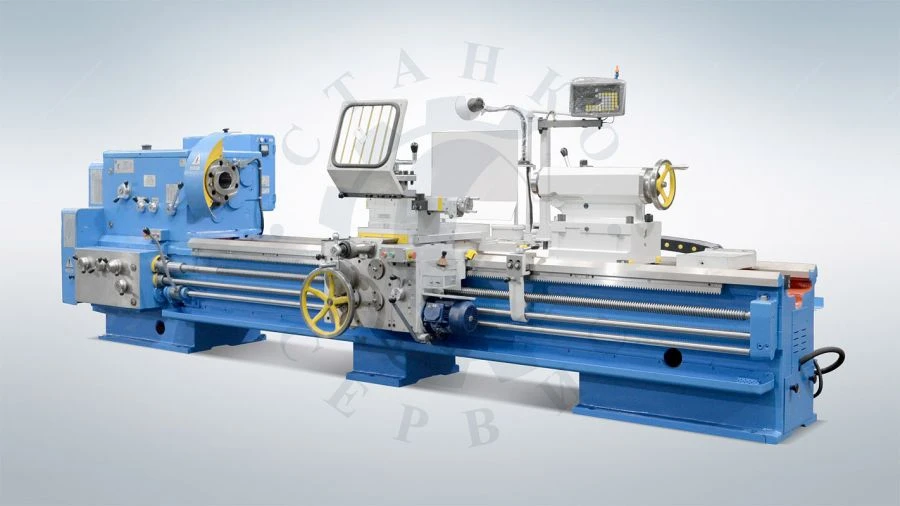

Precision Lathe Machine 16K40F1 for Diverse Turning Operations

Available for Import

Precision Lathe Machine 16K40F1 for Diverse Turning and Thread Cutting

Manual Metal Lathes

Manufacturer: STANKOSERVIS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Screw Centre Lathe 16K40PF1 Screw Centre Lathe 16K40PF1-3 Turning and screw-cutting machine 16K40PF1-4 Screw-cutting lathe 16K40F1-4 Turning and screw-cutting machine 16K40F1-3

Description

The lathe-cutting machine is designed to perform a variety of turning operations, as well as cutting threads: metric, inch, modular and pitch threads.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

1625 mm

Width

1860 mm

Length

5240 mm

Largest diameter of the workpiece to be mounted above the bed

840 mm

Digital Display Unit (DDU)

Installed

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class according to GOST 8-82

Machine weight together with electrical equipment

6200 kg

Total power of electric motors installed on the machine tool

19.72 kW

Main motion drive power

18.5 kW

Maximum torque on the headstock spindle

3.0 kNm

Highest cutting force Pz

20000

Speed of rapid transverse movements of the slide

2000 mm/min

Speed of rapid longitudinal movements of the caliper

5200 mm/min

Step limits of machinable threads: inch threads, number of threads per 1"

112-0.5 pitch diametral

Step limits for machinable modular threads

0.25-56 module

Step limits for machinable inch threads

28-0.25 threads per 1 inch.

Step limits for machinable metric threads

1...224 mm

Spindle speed limits

10...1250

Longest longitudinal length of the slide stroke

2850 mm

Longest workpiece length

3000 mm

Largest diameter of the workpiece to be machined above the bed

800 mm

Largest diameter of the workpiece to be mounted and machined above the slide

490 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
