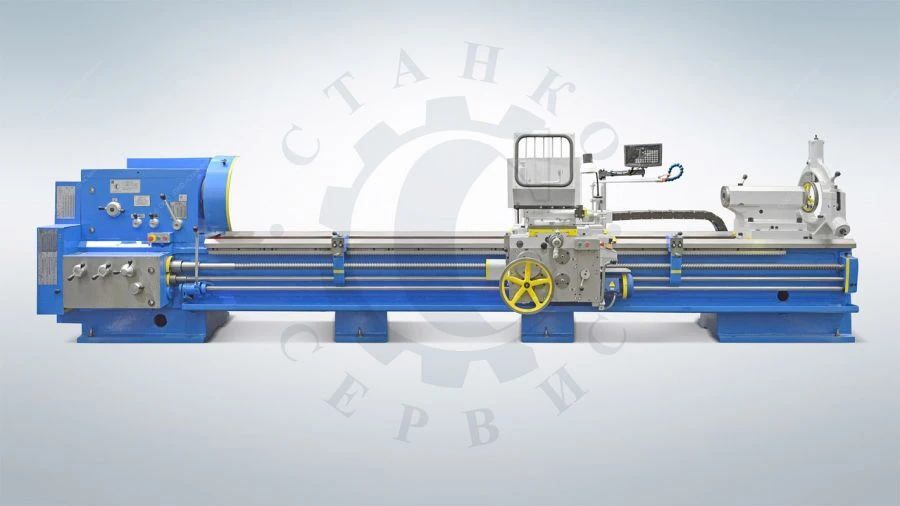

Precision Lathe Machine 1M63NF1-8 for Various Thread Cutting Applications

Manual Metal Lathes

Manufacturer:STANKOSERVIS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Turning and screw-cutting machine 1M63NF1-10 Turning and screw-cutting machine 1M63NF1-5

Description

The 1M63NF1-8 turning and screw-cutting machine is designed to perform a variety of turning operations, as well as cutting threads: metric, inch, modular and pitch.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

1550 mm

Width

1780 mm

Length

10300 mm

Digital Display Unit (DDU)

Installed

Roughness of the cylindrical surface of the sample product after its finish machining

Ra2.5 µm

Accuracy class according to GOST 8-82

Total power of electric motors installed on the machine tool

16.22 kW

Main motion drive power

15 kW

Maximum torque on the headstock spindle

3.0 kNm

Highest cutting force Pz

22000

Speed of rapid transverse movements of the slide

2000 mm/min

Speed of rapid longitudinal movements of the caliper

5200 mm/min

Step limits for machinable pitch threads

112-0.5 pitch diametral

Step limits for machinable modular threads

0.25-56 module

Step limits for machinable inch threads

28-0.25 threads per 1 inch.

Step limits for machinable metric threads

1...224 mm

Longest longitudinal length of the slide stroke

7850 mm

Machine weight together with electrical equipment

10300 kg

Largest diameter of the workpiece to be mounted above the bed

700 mm

Largest diameter of the workpiece to be machined above the bed

630 mm

Largest diameter of the workpiece to be mounted and machined above the slide

350 mm

Longest workpiece length

8000 mm

Spindle speed limits

10...1250

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
