Available for Import

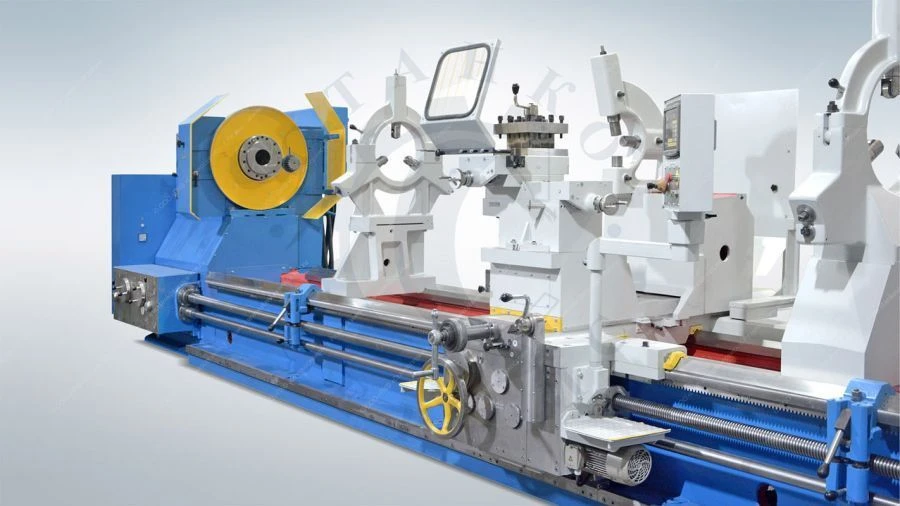

Precision Lathe Machine for Turning and Threading RT317F1-13 for All Machining Needs

Manual Metal Lathes

Manufacturer:STANKOSERVIS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Turning and screw-cutting machine tool RT317F1-11 Turning and screw-cutting machine tool RT317F1-16

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

2660 mm

Width

3280 mm

Length

16650 mm

Step limits for machinable inch threads

24-1/4 threads per 1 inch

Step limits for machinable metric threads

1...96 mm

Maximum lateral movement of the slide

850 mm

Maximum longitudinal movement of the slide

12600 mm

Diameter of the cylindrical bore in the spindle

128 mm

Spindle speed limits

5...500

Longest workpiece length

13000 mm

Largest diameter of the workpiece to be mounted above the bed

1700 mm

Largest diameter of the workpiece to be machined above the bed

1300 mm

Largest diameter of the workpiece to be mounted and machined above the slide

1300 mm

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82

Machine weight

44400 kW

Height of the tool to be mounted

SBVVBG mm

Main motion drive power

30 kW

Highest cutting force Pz

41000

Highest torque on the spindle

9.5 kNm

Speed of rapid transverse movements of the slide

1000 mm/min

Speed of rapid longitudinal movements of the caliper

3000 mm/min

Step limits for machinable modular threads

0.5-24 module

Digital Display Unit (DDU)

Installed

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
