Proppant Pack Conductivity Measurement System API-RP-61 (ISO 13503-5)

Available for Import

Proppant Pack Conductivity Measurement System API-RP-61 for Testing and Evaluation

Material Testing Machines

Manufacturer: INTERTEK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

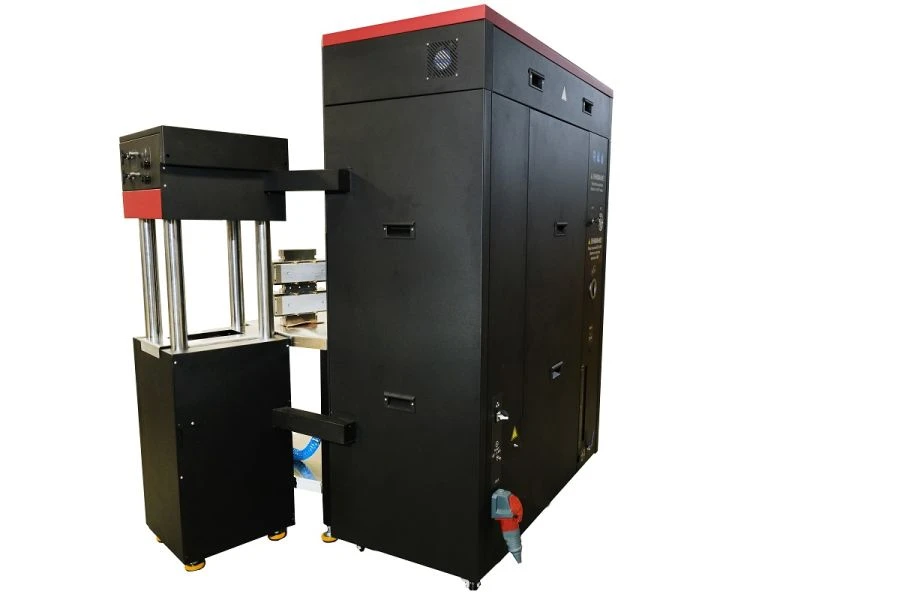

Installation for measuring the conductivity of proppant pack - ITEK is designed for testing and developed to create standard methods and conditions used in assessing the long-term conductivity of various fluids, for hydraulic fracturing in laboratory conditions. This method allows the user to compare conductivity characteristics under specific described test conditions. The test results can assist the user in comparing propping filler materials for use in fracturing operations. The facility allows the determination of API short-term conductivity and ISO 13503-5 long-term conductivity between core plates.

Specifications

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Accuracy of fluid flow rate maintenance, error

0.5 %

Heating temperature of the plant elements

0...150 °C

Number of proppant test cells

4 pcs

Material of parts in contact with KCl solution

stainless steel

Accuracy of differential pressure measurement

0.1 %

Accuracy of strain measurement

0.025 mm

Maximum pressure of KCl solution in the system

5.2 MPa

Maximum axial force per cell

138 MPa
