PVC Insulated Power Cable - NYM 5x2.5 for Reliable Electrical Supply

PVC Insulated Power Cable NYM 5x2.5 for Safe and Efficient Electrical Applications

Manufacturer:TSVETLIT OJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

PVC insulated power cable NYM 2x16Power fire-resistant cable with PVC insulation NYMng(A)-LS 3?25PVC insulated power cable NYM 5x10Fire-resistant PVC-insulated power cable NYMng(A)-LS 5x1.5PVC insulated power cable NYM 5x25
PVC insulated power cable NYM 5x4PVC insulated power cable NYM 3x4Fire-resistant PVC-insulated power cable NYMng(A)-LS 4x2.5Fire-resistant power cable with PVC insulation NYMng(A)-LS 2x25Fire-resistant power cable with PVC insulation NYMng(A)-LS 2x16PVC insulated power cable NYM 5x35Fire-resistant PVC-insulated power cable NYMng(A)-LS 2x10PVC insulated power cable NYM 4x16Fire-resistant PVC-insulated power cable NYMng(A)-LS 5x2.5Fire-resistant PVC-insulated power cable NYMng(A)-LS 4x25Fire-resistant PVC-insulated power cable NYMng(A)-LS 5x25Fire-resistant PVC-insulated power cable NYMng(A)-LS 2x4PVC insulated power cable NYM 4x2.5PVC insulated power cable NYM 2x25Fire-resistant power cable with PVC insulation NYMng(A)-LS 3x35Fire-resistant PVC-insulated power cable NYMng(A)-LS 3x6PVC insulated power cable NYM 3x25PVC insulated power cable NYM 4x35PVC insulated power cable NYM 3x6Fire-resistant power cable with PVC insulation NYMng(A)-LS 5x35Fire-resistant PVC-insulated power cable NYMng(A)-LS 4x10PVC insulated power cable NYM 3x2.5PVC insulated power cable NYM 2x10Fire-resistant power cable with PVC insulation NYMng(A)-LS 3?4PVC insulated power cable NYM 4x1.5PVC insulated power cable NYM 4x4PVC insulated power cable NYM 3x35Fire-resistant power cable with PVC insulation NYMng(A)-LS 2x35Fire-resistant power cable with PVC insulation NYMng(A)-LS 3?2.5PVC insulated power cable NYM 2x35Fire-resistant power cable with PVC insulation NYMng(A)-LS 4x6Fire-resistant power cable with PVC insulation NYMng(A)-LS 2x6PVC insulated power cable NYM 5x1.5Fire-resistant power cable with PVC insulation NYMng(A)-LS 4x16Fire-resistant PVC-insulated power cable NYMng(A)-LS 4x4Fire-resistant power cable with PVC insulation NYMng(A)-LS 3?16PVC insulated power cable NYM 4x6PVC insulated power cable NYM 4x10PVC insulated power cable NYM 2x4PVC insulated power cable NYM 3x1.5PVC insulated power cable NYM 3x10PVC insulated power cable NYM 2x1.5Fire-resistant PVC-insulated power cable NYMng(A)-LS 5x6PVC insulated power cable NYM 2x6Fire-resistant PVC-insulated power cable NYMng(A)-LS 5x16PVC insulated power cable NYM 3x16PVC insulated power cable NYM 2x2.5PVC insulated power cable NYM 5x6Power fire-resistant cable with PVC insulation NYMng(A)-LS 4x35

Description

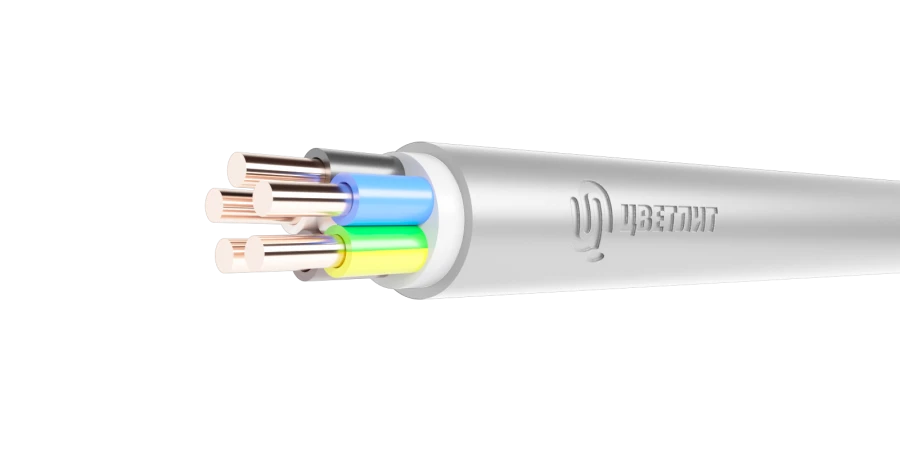

Power cable, with copper single- and multi-conductor cores, with polyvinyl-chloride insulation, with internal filling of non-vulcanised rubber in polyvinylchloride sheath. Cables are used for stationary laying in lighting and power networks, designed for operation in residential, domestic, administrative and industrial premises. It is possible to lay cables over plaster, in plaster and under plaster, in brickwork, in concrete, in pipes and channels.

Specifications

Mark
NYM
Core material
Copper
Insulation material
PVC plasticate
Sheath material
PVC plasticate
Filler material
cable compound or non-vulcanized chalk-filled rubber
Climatized version
UHL
Nominal voltage
300/500 V
Ambient temperature during cable operation
OT -50 to +50 °C
Number of cores
5 pcs
Core cross section
2.5 mm²
Number of wires in the core
1 pcs
Cable outer diameter
11...13.3 mm
Twisting
insulated conductors twisted into a core
Minimum permissible bending radius for installation
7.5 cable diameters

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
