R30 Single-Needle Tram Switch for Efficient Track Divergence (Project 8678.00.000)

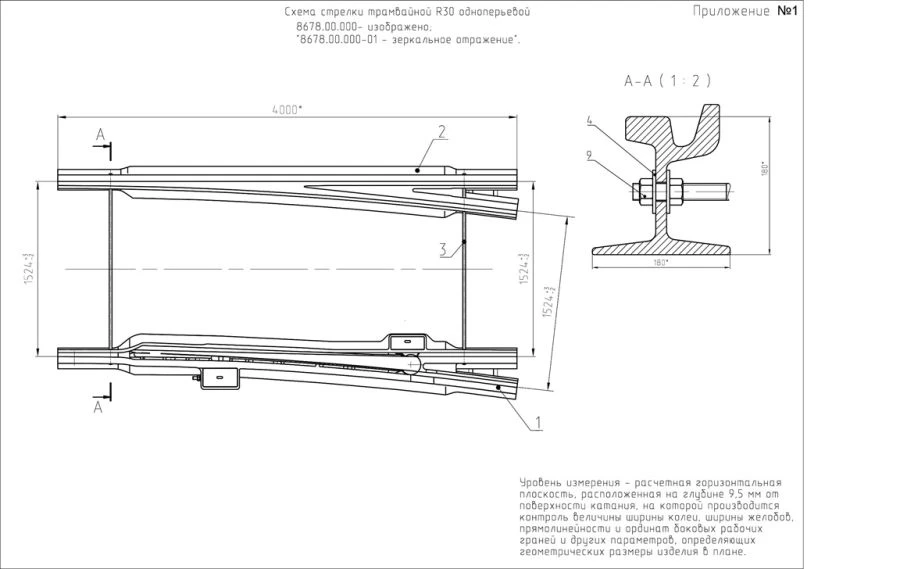

Tramway arrow R30 single-peripheral (project 8678.00.000): a special structure serving for connection, branching and crossing of tramways, in order to direct the movement of rolling stock from one track to another. The structure of the arrow includes: the arrow body and the cast body are made in the form of castings of high-manganese steel; the turning feather is made in the form of castings of high-manganese steel. The arrow is operated outdoors in macroclimatic regions of temperate and cold climate as a product UHL1 according to GOST 15150. The arrow is designed to pass the rolling stock with wheel bands according to GOST 25712.
